Equipment

QM-1927+

Name: 1927nm 1550nm Thulium Laser
Brand: QM
SKU: QM-1927+

1927nm 1550nm Thulium Laser

Skin Rejuvenation; Skin Tightening; Scar Removal; Cellulite Removal

Request a Quote WhatsApp

QM-1927+

What would you like to check?

Configuration optionsReview configuration and version SpecificationsGo to the model specification table Documents & supportRequest model documents and support

Vertical 1927nm&1550nm Thulium Laser

The 1927 nm & 1550 nm fractional fiber laser is a professional dual-wavelength mid-infrared system offering non-ablative and micro-ablative modes. By combining a wavelength optimized for epidermal resurfacing with one that penetrates deeper into the dermis, it promotes collagen regeneration, stimulates epidermal reconstruction, and delivers significant anti-inflammatory and deep anti-aging effects. It is a preferred solution for skin rejuvenation, acne and acne-scar repair, oil control, and treatment of inflammatory pigmentation and other pigmented lesions.

Clinically, the device is intended for trained professional operation and user-friendly: treatments are less painful, require almost downtime depends on treatment settings and client response, and the system uses no consumables. It can be combined with topical actives or drug-loaded protocols to enhance and prolong results, making it attractive to patients and a sustainable revenue source for medical clinics and beauty salons.

The 1927 nm thulium component (often called the BB Laser) produces controlled photothermal effects and thermal coagulation in water-rich tissue. Its high absorption in water enables both ablative and non-ablative effects with precise depth control determined by pulse energy, delivering dermal remodeling, pore tightening and wrinkle smoothing while reducing the risk of post-inflammatory pigmentation compared with single ablative methods.

Application

Epidermal Pigmented Lesions
Enlarged pores
Acne Scars
Fine lines and wrinkles
Uneven Skin Texture / Coloration
Hair Loss
Freckles and sun spots
Actinic keratosis (precancerous skin lesions)
Age spots
Surgical scars
Anti-aging and Skin Tightening Applications
Whitening and Melasma Treatment
Anti-aging Around the Eyes
Oil Control and Acne Treatment

Clinical Advantages

configurable for a range of skin types with settings selected by a trained operator
Customizable scan patterns and density
Minimal pain and recovery time
Long-lasting collagen regeneration
Synergistic with mesotherapy or topical infusions
Treats mild to moderate actinic keratoses, benign pigmented lesions, freckles and lentigines on the face, neck and décolleté.
Exceptional Precision & Safety: The laser's energy is confined to a very shallow depth, supporting minimal thermal damage to the surrounding healthy tissue. This allows for safe treatments even in the most delicate areas, such as around the eyes.
Minimal Downtime: Treatments are renowned for their"lunchtime procedure"appeal. Patients experience rapid healing and can typically return to their daily activities almost immediately.
Versatile Application Platform: A single, powerful platform can address a wide range of common aesthetic concerns, making it an invaluable investment for your practice.

How It Works

Thulium lasers operate at a wavelength of 1927 nanometers, penetrating the skin to a depth of approximately 200-400 micrometers. This depth allows the laser to precisely target the epidermis and superficial dermis, effectively treating superficial epidermal problems without causing significant damage to the epidermis. The 1927nm fractional laser is characterized by using a fractional handpiece to focus the laser into a tiny spot (approximately 0.1-0.15mm in diameter) to irradiate the skin, achieving a non-ablative or micro-ablative effect, primarily used for skin rejuvenation and wrinkle reduction. If the laser irradiation time is long enough, a micro-ablative effect can occur. Shortening the irradiation time and reducing the energy density may create thermal coagulation vertical bands, thereby activating collagen and causing skin contraction.

Furthermore, these microchannels can enhance the penetration of growth factors, peptides, and cosmeceutical essences, optimizing post-treatment results.

Treatment Characteristics of Thulium Laser

Thulium laser (Tm:YAG) is an infrared laser. In the wavelength range of 400-2000nm, the laser penetration depth increases with the increase of wavelength. The skin penetration depth of 1927nm thulium laser is the deepest, the scattering effect is strong, and the thermal effect of dermal tissue is significant.

The main target tissue of 1927 thulium laser is water. Since the water content of dermis is higher than that of epidermis, the heat accumulation and temperature rise of dermis are higher than that of epidermis during thulium laser treatment. As a “window”, the epidermis has limited heating, and the heating is mainly reflected in the dermis, accessory organs, and even subcutaneous tissue.

During the penetration process, the hemoglobin in the blood vessels absorbs it more strongly, so it has the effect of coagulation, treatment of red blood streaks and acne (inflammation).

Because thulium laser has a deep penetration depth and has a significant thermal diffusion effect on the skin, it is highly safe and not easy to burn the skin.

Non-ablative treatment of thulium laser does not damage the skin, has no inflammatory reaction, is not easy to stimulate pigment cells and tyrosinase activity, and is not easy to cause pigmentation.

After Thulium laser skin treatment, collagen can be reconstructed, thus achieving the effects of wrinkle removal, anti-aging, lifting, whitening, etc. Its non-invasive and non-inflammatory characteristics can also be used to treat vascular chloasma, acne, etc.

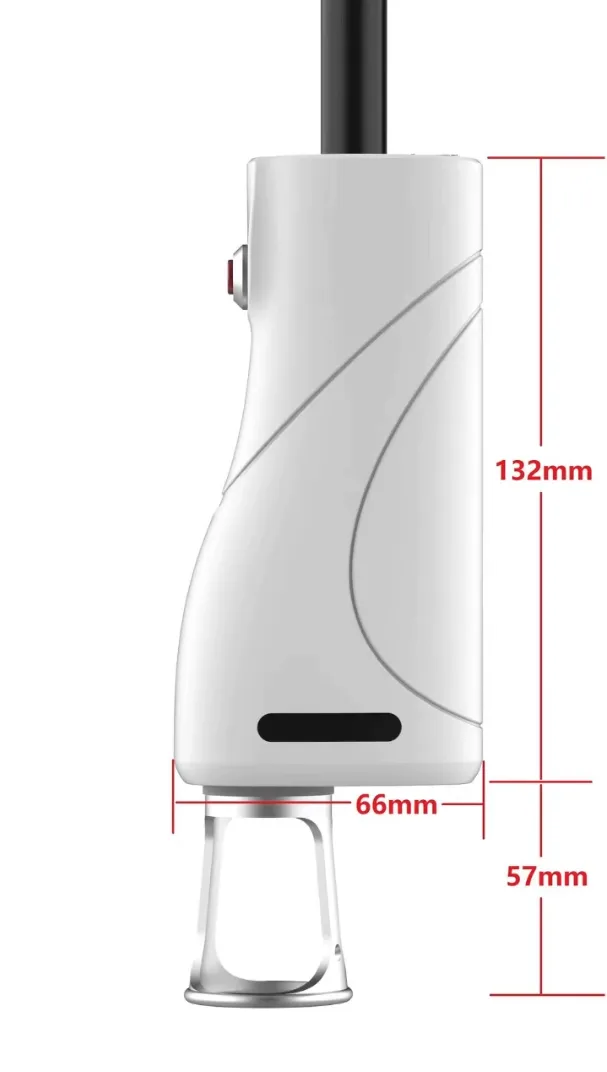

Thulium Laser Machine Handpiece

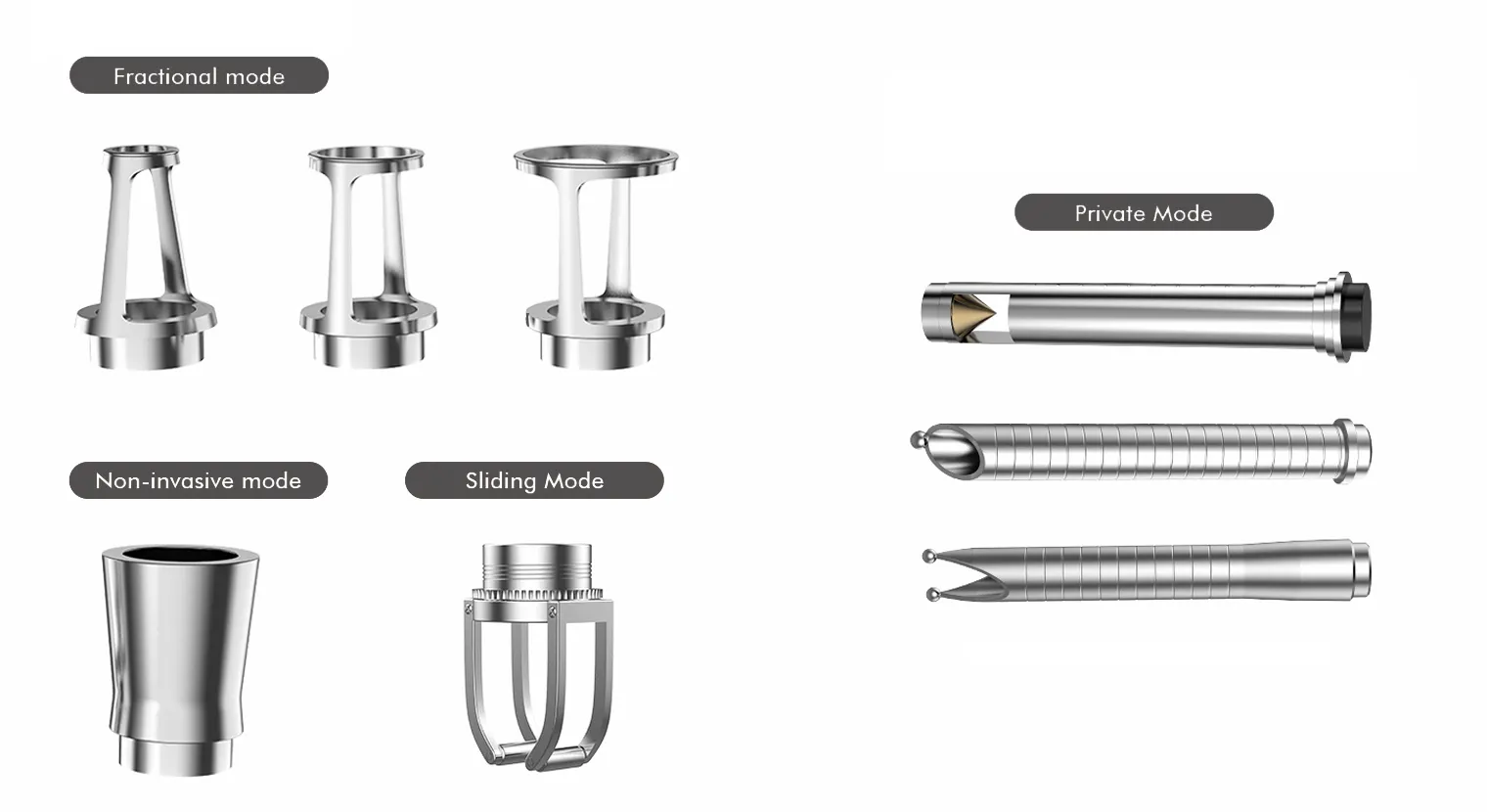

Various sizes of tip and roller tips optional
Treat diverse indications by separate setting of"Pulse duration"and"Power"
Low maintenance cost swing to Non-consumable and long life time of Thulium fiber

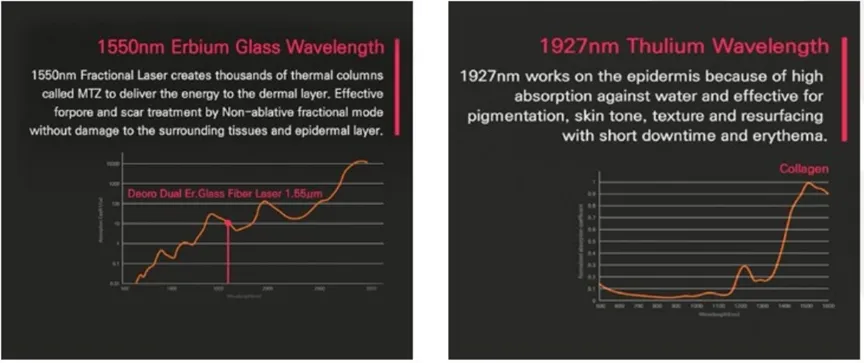

1927 nm vs. 1550 nm Laser Aesthetic Treatments

Feature	1927 nm Thulium Laser	1550 nm Erbium-glass Laser
Primary Target	Epidermis & superficial dermis (approx. 200–400 µm depth)	Deep dermis
Main Mechanism	Micro-ablative / non-ablative; creates thermal coagulation zones; opens epidermal channels	Non-ablative; creates microscopic thermal zones (MTZ) without epidermal damage
Key Aesthetic Focuses	- Pigmented lesions (freckles, age spots, melasma, sun spots) - Skin texture & tone unevenness - Actinic keratosis - Oil control & active acne (anti-inflammatory) - Hair loss / eyebrow growth - Eye area rejuvenation (wrinkles, dark circles, bags) - Whitening	- Deep wrinkles & fine lines - Atrophic acne scars - Enlarged pores - Skin tightening & laxity - Stretch marks - Overall skin resurfacing & firming
Clinical Advantages	-Minimal downtime(“lunchtime procedure”) - Very low risk of post-inflammatory hyperpigmentation (PIH) - configurable for a range of skin types with settings selected by a trained operator - Enhances penetration of topical agents (via microchannels) - Non-inflammatory, suitable for melasma and vascular lesions - Fast visible results (as early as 1 week)	- Non-ablative → no epidermal break, very safe - Long-lasting collagen remodeling - Minimal pain & recovery - Customizable scan patterns & density - No consumables, low maintenance - Effective for deep scars and pores
Mechanism Details	High water absorption → precise thermal effect in water-rich tissue. Hemoglobin absorption helps treat redness and acne.	Water absorption creates deep thermal columns that stimulate dermal collagen while managing exposure to the epidermis.
Common Applications	Melasma, freckles, sun spots, actinic keratosis, acne, periorbital wrinkles, hair regrowth, skin brightening	Acne scars, surgical scars, deep wrinkles, large pores, skin laxity, stretch marks

Combined Use (Dual Wavelength – 1550 nm + 1927 nm)

When used together in one system, they offer synergistic full-layer skin rejuvenation:

1550 nm treats deep dermal issues (scars, wrinkles, pores).
1927 nm treats superficial epidermal issues (pigmentation, texture, tone).
Result: comprehensive anti-aging, scar reduction, pore tightening, and pigmentation correction with minimal pain and downtime.

Before & After

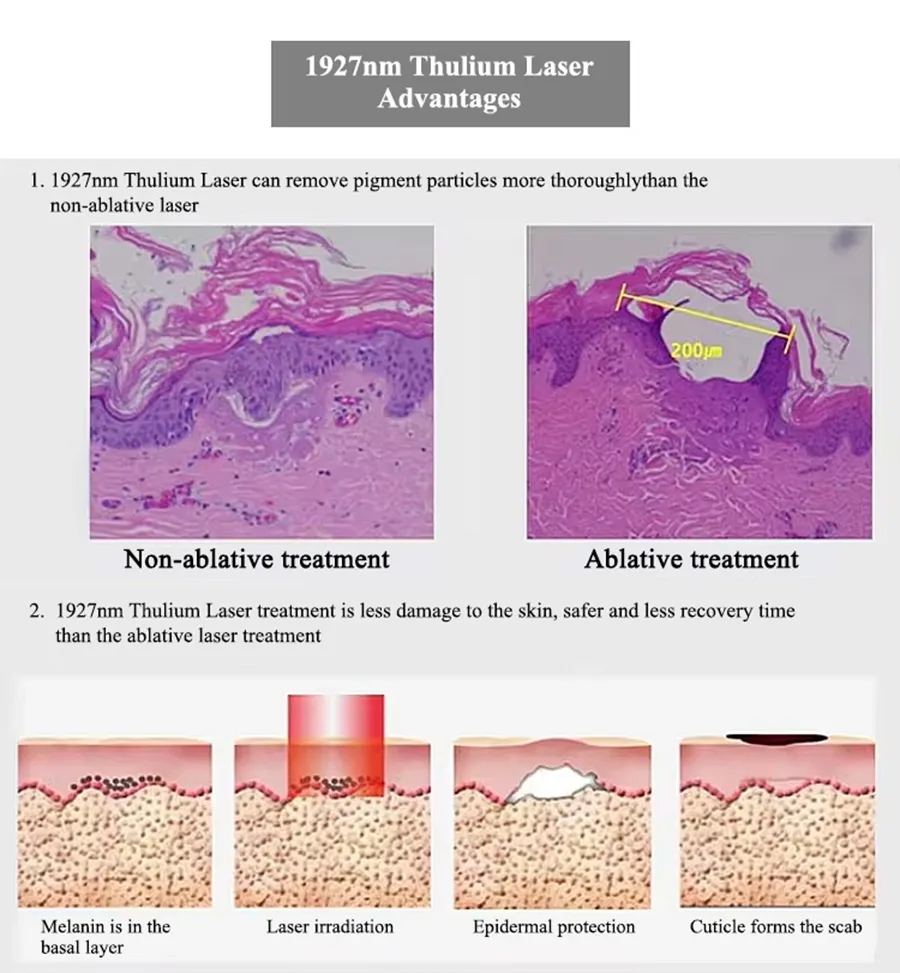

Advantages of Thulium Laser

1. Creates tiny hot zones on the skin, prompting the body to rapidly generate new tissue.

2. Increases penetration while minimizing mechanical disruption to the stratum corneum.

3. Utilizes 20 watts of power to ensure the fastest, most consistent results.

4. Non-ablative and micro-ablative treatments, no surgery and injections required, downtime depends on treatment settings and client response.

5. Low machine maintenance cost, no consumables for thulium laser fiber output, long machine life.

6. 5 types, 8 units of treatment handpiece, targeted solutions for different skin issues.

7. Open the epidermal channels to better absorb skin care ingredients.

8. The treatment is effective quickly and you can see great results in just one week.

9. The skin damage is small and the treatment can be repeated in a short time.

Precautions for the 1927nm Thulium Laser

Pre-Treatment Guidelines

Avoid sun exposure and tanning beds for at least two weeks prior to treatment.

Discontinue the use of retinoids and other photosensitizing agents as advised by the practitioner. (Treatment of melasma with the 1,927-nm fractional thulium fiber laser: a retrospective analysis of 20 cases with long-term follow-up - PubMed)

Post-Treatment Care

Apply broad-spectrum sunscreen daily to protect the treated area.

Use gentle skincare products to avoid irritation.

Follow the practitioner's aftercare instructions diligently to supports trained professional operation. (The beauty function of 1927nm thulium laser in the skin and related introduction. - LitonLaser)

Potential Side Effects

Common side effects include mild redness, swelling, and a sensation similar to sunburn, which typically subside within a few days. Rarely, patients may experience temporary hyperpigmentation or hypopigmentation, which usually resolves over time.

The Future of Aesthetic Laser Technology
The 1927nm Thulium Laser is more than just a device; it is a paradigm shift in aesthetic medicine. By harnessing the natural properties of water within the skin, it delivers unparalleled precision, safety, and proven efficacy.

It empowers practitioners to achieve consistent clinical outcomes while offering patients the quick recovery they desire. Embrace the future of aesthetics and elevate your practice with the cutting-edge technology of the 1927nm Thulium Laser.

At our factory, our 1927nm Thulium Laser systems are engineered to deliver consistent performance and clinical reliability. Designed for integration into professional aesthetic workflows, these devices support a wide range of skin resurfacing and rejuvenation protocols. With stable output, precise energy control, and a user-oriented interface, the system meets the operational needs of medical beauty centers and clinics focused on non-ablative treatments.

Technical Parameters

Power	600W
Wavelength	1927nm + 1550nm
Operation Mode	Fractional Pulse, Super Pulse
Output Power	30W
Scan Graphics	Square, Circle, Triangle, Hexagon, Rhombus, Line
Pulse Width	0.1-10ms
Pulse Energy	1mj-300mj (adjustable)
Dot Pitch	0.1-2.0mm (adjustable)
Spot Size	Normal, Midsplit, Random
Graphic Size	≥0.1mm focus
Screen	11.6-inch Touch LED
Cooling System	Air Cooling
Voltage	AC220V±10%, 50Hz

FAQ

▶What is the difference between Thulium laser treatments in aesthetics and medicine?

Thulium losers are mainly used in assthetic reatments with a wovelength of 1927nm,using non-ablative and micro-oblative treatments to improve somefacial skin issues, such as chloasma, acne, scars,etc.

In the medicalfield, thulum 0asershove a wovelength of 194onm and use ablotive treatmentsto break up stone particles, moking a great contribution tourology.

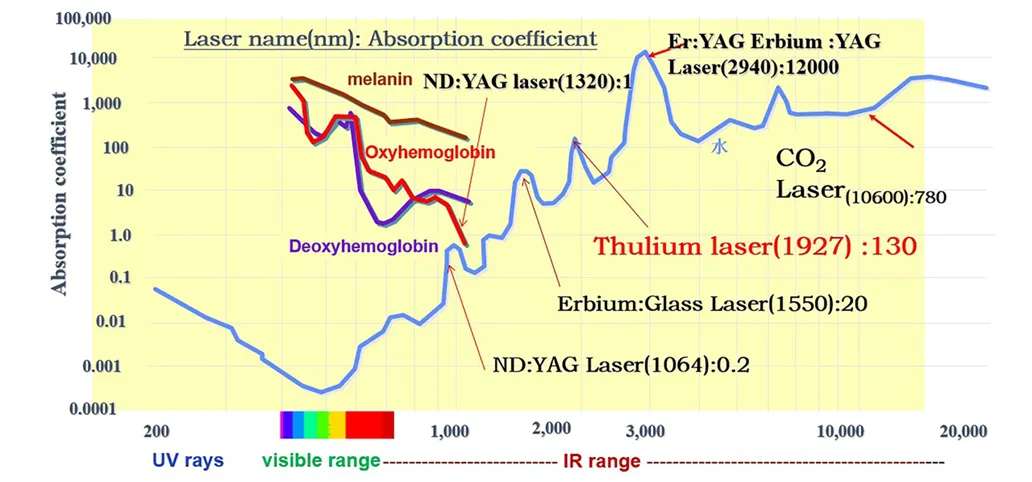

▶What is the difference between Co2 laser 10600nm and Thulium laser 2940nm?

Influenced by traditional CO2 laser design, most commonly used infrared lasers are fractional lasers. There are two transmission methods: fiber optic transmission (1550nm, 1927nm), and optical fiber transmission (2940nm and 10600nm). This is because the longer-wavelength infrared lasers experience excessive losses in optical fiber transmission, necessitating the use of optical fiber transmission arms (at least for now).

Laser"penetration depth"and"treatment depth"can be two different things, often depending on the laser energy density.

During treatment, because 2940nm has the highest water absorption coefficient, when it reaches the epidermis, it is highly absorbed by the water-containing stratum corneum and papillary dermis. High laser energy can immediately cause exfoliation, vaporization, and charring in the epidermis. Therefore, during treatment, we cannot allow 2940nm erbium lasers to penetrate the dermis and form a"thermal coagulation zone."

The 10600nm laser has an absorption coefficient second only to 2940nm, allowing it to penetrate the epidermis. It primarily absorbs water in the dermis, allowing it to penetrate more easily with high-energy irradiation, causing micro-exfoliation and reaching the dermis. However, increasing the energy and exposure time can result in bleeding, charring, burns, and vaporization and exfoliation.

1550nm/1927nm are located in the near-infrared spectral range, which has two small peaks in water absorption. In comparison, water absorbs only one-sixth as much of the 1927 thulium laser as CO2. Therefore, while maintaining safe therapeutic energy, it can potentially penetrate deeper into the skin than CO2, avoiding vaporization and charring reactions. This means it avoids the intense damage to skin tissue that could lead to inflammatory reactions and stimulate melanin activation. Given this premise, the 1927, primarily used for thermal coagulation rather than ablative vaporization, can be considered a safer infrared laser, offering broader application prospects.

▶What is 1927nm Thulium Laser?

The fractional 1927nm thulium laser is a solid-state laser with a wavelength of 1927-1940nm. It is a long-pulse infrared laser, It emits lighting a dot-matrix scanning pattern. The main target chromophore of the thulium laser is water, but the melanin and hemoglobin in the skin also absorb the laser energy. It is one of the important machines in the 3D mesodermal whitening and anti-aging therapy.

Thulium laser has the functions of lifting and firming, treating static wrinkles, whitening and lightening spots (chos sma, pilgmentction), ant-inlammatory,.ollcontrol and acne removal, shrinking pores,shrinking eye bags,iting eyelids,acing dark circles,scolp care to stimulate halir growth, open the skin barier, ancenhance the absorption rate of functional products.

▶How does a thulium laser work?

A thulium laser works by stimulating collagen production and inducing its contraction, thereby shrinking pores, improving fine lines, and firming the skin. During penetration, hemoglobin in blood vessels absorbs it more strongly, thus having a blood-clotting effect and treating rosacea and acne (inflammation). It has an excellent effect on breaking down superficial melanin, making it extremely effective in treating acne scars and dull skin tone!

Configuration notice: Specifications, accessories, interface options and permitted uses vary by destination market and confirmed configuration. The Proforma Invoice, configuration sheet and model-specific documents supplied before payment take precedence.
