Overview
The Titanium Ultrasonic HIFU is a brand-new generation anti-aging platform that integrates high-intensity focused ultrasound (HIFU) with multi-frequency ultrasonic technology and thermal tightening (Hot Maggie) - all in one intelligent system. Designed for professional use in clinics, medical spas, and beauty centers, it delivers non-invasive face lifting, body contouring, and skin rejuvenation with minimal downtime.
Unlike traditional single-handle devices, the Titanium system comes withthree interchangeable handles(Ultrasonic Knife, Ultrasound Gun, and Hot Maggie) and a wide selection of probes (7 for the Ultrasonic Knife, 5 for the Ultrasound Gun, and 3 for Hot Maggie). This flexibility allows practitioners to precisely target different skin layers - from superficial epidermis to deep SMAS - and to treat delicate areas like the periorbital region as well as large body areas.
Working Principle
The Titanium Ultrasonic HIFU system uses focused ultrasound energy at frequencies of2MHz, 4MHz, and 5.5MHz. These frequencies are selectively absorbed by specific tissue depths, generating precise thermal coagulation points (typically 60-70°C) while managing exposure to the overlying skin.
Deep SMAS lifting (4.5mm probe):Energy reaches the superficial musculoaponeurotic system (SMAS) - the same layer targeted in surgical facelifts - causing immediate contraction and stimulating long-term collagen remodeling.
Dermal tightening (3.0mm / 2.0mm probes):Heat stimulates fibroblast activity, producing new collagen and elastin for firmer, smoother skin.
Superficial rejuvenation (1.5mm probe):Fine lines and skin texture improve as the epidermis is gently thermally stimulated.
Body contouring (6.0mm, 9.0mm, 13mm probes):Deeper penetration targets subcutaneous fat and fibrous septae, reducing localized fat deposits and tightening loose skin on the abdomen, thighs, arms, and flanks.
TheThemagehandledelivers volumetric radiofrequency heating to contract existing collagen and trigger new collagen synthesis, complementing the point-focused HIFU action for comprehensive skin tightening.
Key Features & Advantages

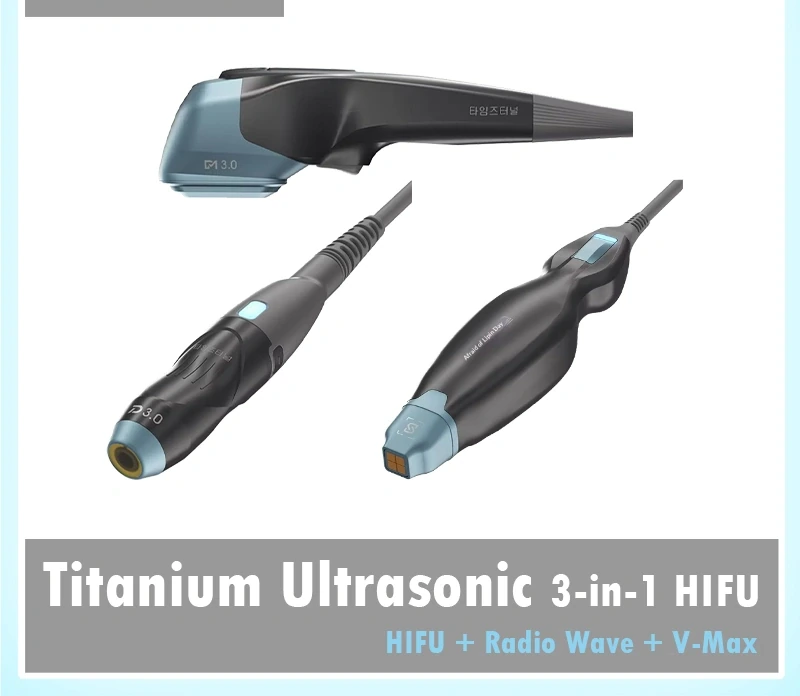

1. Three-Handle Versatility

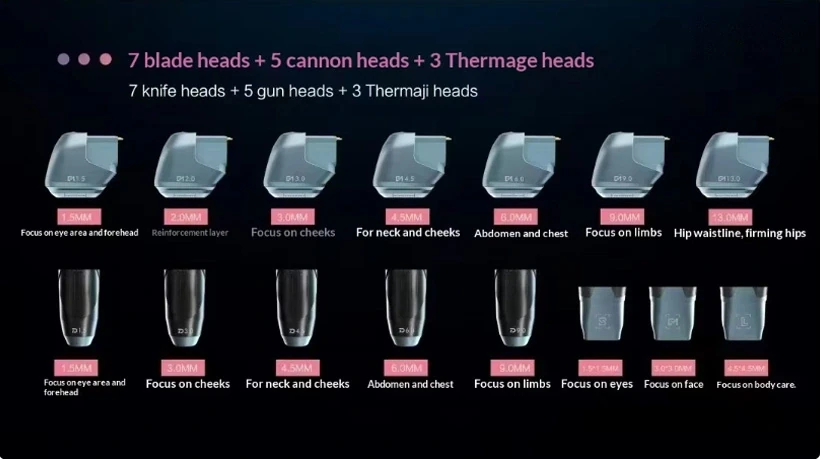

Ultrasonic Knife (HIFU handle):For precise lifting and tightening of the face, neck, and body. Supports 7 probe depths (1.5mm, 2.0mm, 3.0mm, 4.5mm, 6.0mm, 9.0mm, 13mm).
Ultrasound Gun:Ergonomic design for body shaping and fat reduction. Supports 5 probe depths (1.5mm, 3.0mm, 4.5mm, 6.0mm, 9.0mm).
Themage Handle:Multi-polar RF for skin tightening, wrinkle reduction, and pore refinement. Supports 3 probe sizes (1.5×1.5mm, 3.0×3.0mm, 4.5×4.5mm).
2. Multi-Depth, Full-Layer Treatment
From the superficial epidermis (1.5mm) to deep SMAS (4.5mm) and even subcutaneous fat (13mm), the Titanium system allows customized layering based on the client's age, skin condition, and treatment area - including the delicate eye area.
3. Intelligent Touchscreen Interface
The 15.6-inch high-brightness display features an intuitive UI that automatically switches to the corresponding operation interface when a handle is picked up. Real-time parameters (energy, shots remaining, mode, probe type) are clearly shown.
4. Safety & Comfort Features
Foot pedal control for hands-free operation.
Probe replacement button with mechanical lock to prevent accidental detachment.
Automatic energy regulation and real-time impedance monitoring.
Contact cooling (depending on probe) to protect the epidermis.
5. Recovery planning
Recovery, reactions and aftercare depend on the individual, settings and procedure. Follow the supplied instructions and the treating professional’s advice before resuming activities or applying cosmetics.
6. Individual treatment planning
Response, session count, recovery and duration of results vary by individual and protocol. A qualified practitioner determines suitability; no result or recovery time is guaranteed.
Before & After - What to Expect
Discuss expected reactions, recovery and follow-up with a qualified practitioner using the instructions for the supplied configuration. Individual outcomes vary; example treatment timelines are not a guarantee.
Contraindications & Safety
Do not use on:
Pregnant or lactating women
Clients with pacemakers, metal implants, or electronic devices in the treatment area
Active skin infections, open wounds, severe acne, or eczema
History of keloid scarring or autoimmune diseases
Chemotherapy/radiotherapy patients
Uncontrolled hypertension or diabetes
Pre-treatment consultationis mandatory. Always perform a patch test on a small area before full treatment.
Cleaning:After each use, wipe the handles, probes, and host with a soft, damp cloth and mild detergent. For deep cleaning (weekly), use a cotton swab with a small amount of alcohol to clean interfaces and crevices. Dry thoroughly.
Storage:Keep in a dry, dust-proof cabinet at 5-35°C, humidity 30-70%. Avoid direct sunlight and high humidity.
Warranty and repairs: The order documents specify warranty duration, covered components, exclusions, repair arrangements and transport costs for the supplied configuration. Confirm these terms before payment.
Titanium Ultrasonic FAQ
Q1: Is the treatment painful?
Most clients feel only a mild prickling or deep warmth during the HIFU pulses. The Hot Maggie RF handle is completely comfortable - only gentle heating. No topical anesthesia is required for most areas.
Q2: How many sessions are needed?
A qualified practitioner determines the plan after assessment. Session counts and intervals depend on the individual and approved operating protocol; no fixed treatment schedule guarantees a result.
Q3: How long do results last?
Duration varies with the individual, treatment settings and follow-up care. A fixed duration cannot be promised for every client.
Q4: Can the Titanium system treat the eye area?
Yes - the 1.5mm and 2.0mm probes are specifically designed for the delicate periorbital region (upper eyelids, crow's feet). Always use low energy and follow the strict protocol to supports trained professional operation.
Q5: What is the difference between the Ultrasonic Knife and the Hot Maggie handle?
The Ultrasonic Knife delivers focused, point-by-point HIFU energy for deep lifting (SMAS). The Hot Maggie handle delivers multi-polar RF for volumetric heating of the dermis - it tightens existing collagen and stimulates new collagen without discrete coagulation points. Together, they provide both deep lift and superficial tightening.
Q6: Is there any downtime?
Recovery varies. The treating professional should explain possible reactions, aftercare and when to resume activities for the actual procedure; an immediate return cannot be guaranteed.
Q7: What is the frequency of the device?
The device operates at 2MHz, 4MHz, and 5.5MHz, switchable according to the probe type. Lower frequencies penetrate deeper.
Q8: Can I use the device on a range of skin types with settings selected by a trained operator?
Yes, HIFU is color-blind - it works equally well on all Fitzpatrick skin types (I-VI) because it does not rely on melanin absorption. The Hot Maggie RF is also configurable for all skin tones.
Why Choose the Titanium Ultrasonic HIFU?
One machine, three handles- covers lifting, tightening, body contouring, and skin rejuvenation.
Wide probe selection (15+ probes)- treat everything from eye wrinkles to thigh fat.
Professional touchscreen interface- easy to learn, simple to operate.
Configuration and training - confirm the supplied probes and operating instructions before use.
For more information, including pricing, training videos, and clinical case studies, please contact our sales team.
our factory-Your partner in aesthetic innovation.
Configuration notice: Specifications, accessories, interface options and permitted uses vary by destination market and confirmed configuration. The Proforma Invoice, configuration sheet and model-specific documents supplied before payment take precedence.
