Equipment

Hally II

Pico Laser Machine

Pico · Tattoo Removal; Pigmentation Removal

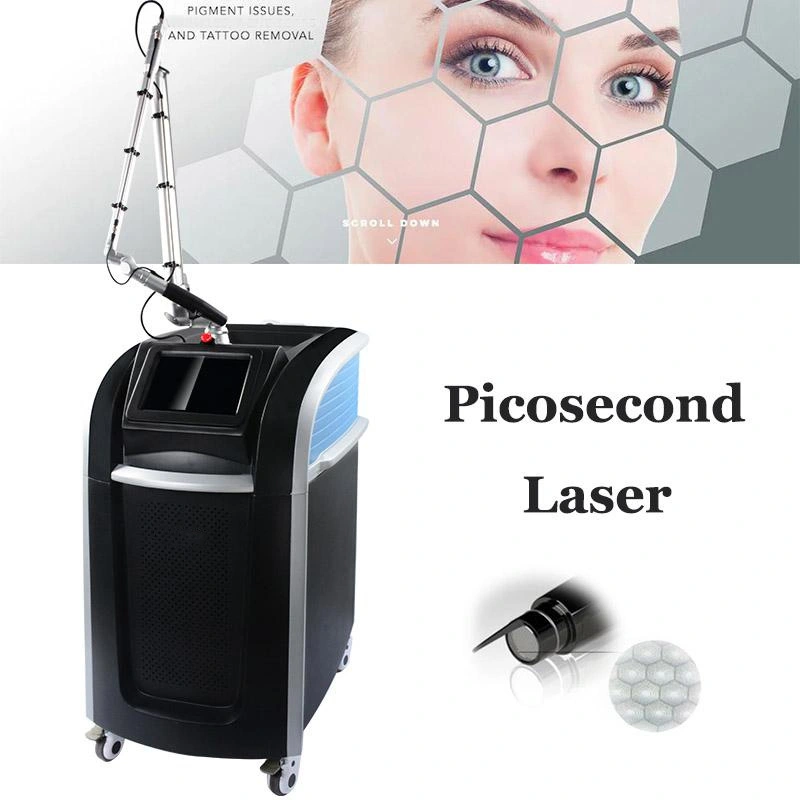

Professional Pico Laser Machine

Due to the influence of lifestyles, environmental factors, and other factors, skin pigmentation and dark spots are on the rise. Having a professional tattoo removal machine with a true picosecond laser is key to increasing revenue. Its speed is incredibly fast—1 picosecond = one trillionth of a second (10 to the negative 12th power). This high speed allows for greater and finer bursts of laser energy, resulting in better tissue absorption and a more effective treatment. Thermal damage is also minimized, significantly reducing the risk of immediate hyperpigmentation.

Another significant advantage of the pico laser machine is its ability to rejuvenate the skin, including wrinkle reduction, pore refinement, and skin whitening. Significant improvements can be achieved in just one or two treatments, making it a flagship product for clinics, building trust and attracting new clients. For clients, the remarkable results, the non-invasive treatment, and the minimal downtime required for work and daily life are exactly what they desire. Professional Pico Laser Machine

Application of Pico Laser Machine

Professional tattoo removal machine are widely used in clinics and medical spas for removing unwanted tattoos, hyperpigmentation, acne scars, and skin resurfacing.

Picosecond laser technology, with its ultrashort pulse duration, delivers energy in trillionths of a second. This allows practitioners to precisely target ink particles and melanin, supporting faster results, shorter downtime, and reduced risk of skin damage. Whether you're looking for a reliable tattoo removal laser machine or expanding your skincare services, picosecond lasers offer a intended for trained professional operation, and modern solution.

Picosecond Laser

Removal of melasma, freckles, age spots, brown spots, acne marks, acne scars, and other endogenous pigmentation; brow and tattoo removal; mole and birthmark removal; and nevus of Ota removal.

  • Eyebrow Removal
  • Tattoo Removal
  • Blemish Removal
  • Mole Removal

🔹Tattoo Removal

Picosecond lasers are ideal for breaking down stubborn tattoo ink, including multi-color designs. Their picosecond operating speeds and minimal thermal damage make them the top choice for anyone seeking professional-grade performance in laser tattoo removal.

🔹Pigmentation Treatment

From sunspots to melasma, the pico laser precisely targets pigmented lesions without harming surrounding skin, leading to more even skin tone and improved complexion.

🔹Acne Scar and Wrinkle Reduction

By stimulating collagen remodeling, the laser improves skin texture, reducing acne scars, fine lines, and wrinkles over time.

🔹Skin Rejuvenation

Low-energy settings can be used for overall facial brightening and pore refinement, offering a non-invasive way to refresh dull or aging skin.

How a Picosecond Laser Machine WorksPicosecond Laser Light Guide Arm

How a Picosecond Laser Machine Works

1 picosecond = 1 trillionth (10 to the negative 12th power) of a second!

Picosecond lasers emit extremely short light pulses, ranging from one picosecond to tens of picoseconds. The properties of picosecond lasers allow them to absorb the wave pulses, producing a brief and precise photothermal effect in the target area, accompanied by rapid changes in volume, leading to ultrastructural and intrinsic chemical changes. This is also known as the photoacoustic effect because of the sonic boom. The laser beam passes these waves through the skin around the tattoo or pigmentation area, disrupting the ink particles and causing chemical and structural changes in the skin, which then break up the particles and allow them to be excreted through the body's lymphatic system.

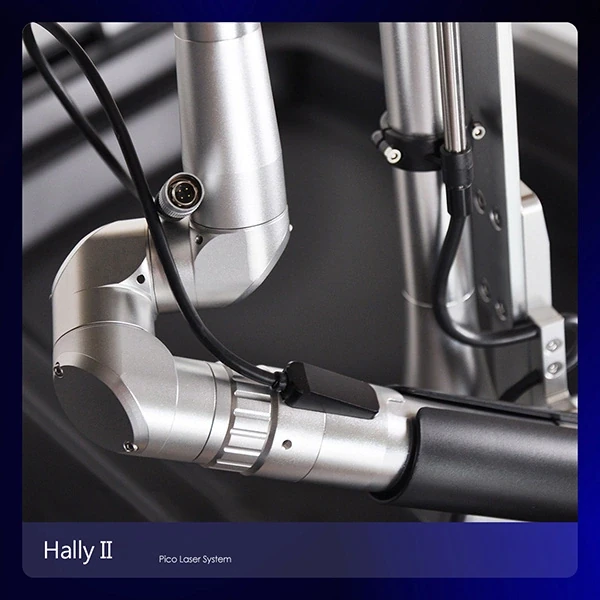

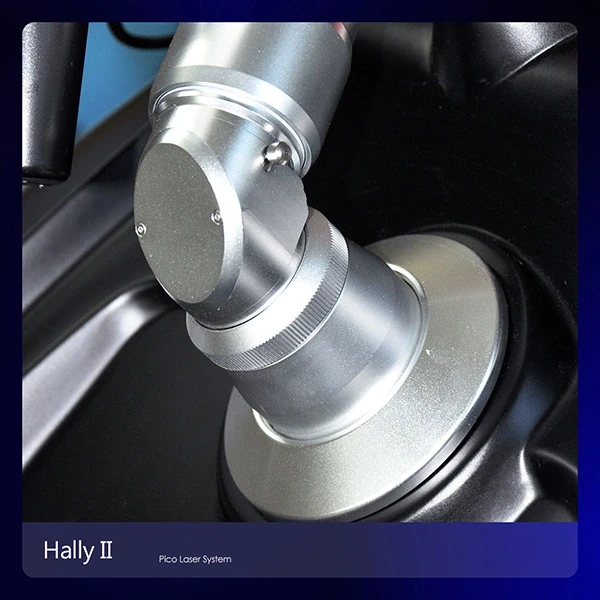

Picosecond Laser Light Guide Arm

For ultimate laser precision, we imported a seven-jointed arm from South Korea. This lightweight, flexible, and ergonomically designed arm allows operators to provide efficient, precise, and comfortable treatments.

The 360° rotatable joint reduces energy loss and enhances ease of use.

The imported Korean light guide arm offers a long service life.

Adjustable spot size from 2 to 10 mm improves work efficiency.

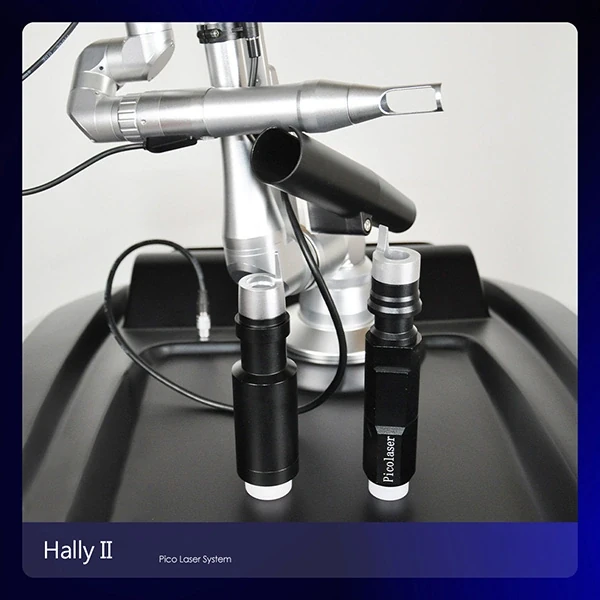

Picosecond Laser Tips

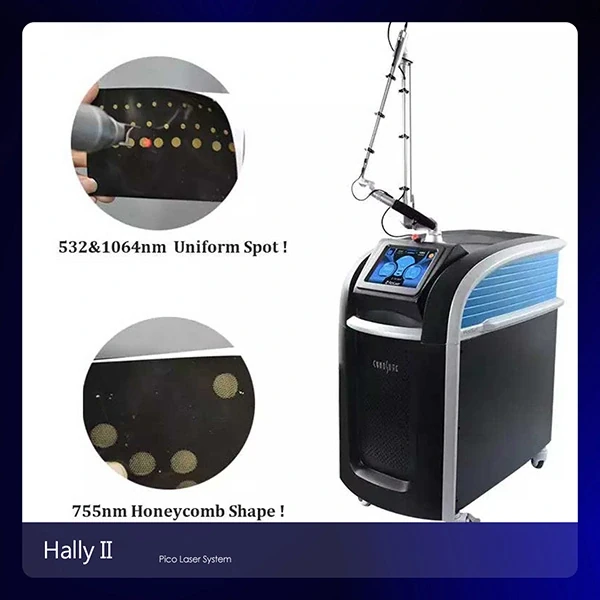

1064nm Wavelength Tip

Flexible spot size adjustment makes it ideal for removing individual tattoos, freckles, and moles.

The 1064nm Wavelength Tip allows for adjustable laser spot size (1 mm to 10 mm), enabling physicians to use larger spot sizes while maintaining stability during treatment.

532nm Wavelength Tip

Produces a photothermal effect with a short downtime, making it ideal for skin rejuvenation and tightening.

Energy is delivered in a circular pattern with a 10 mm spot size.

755nm Wavelength Tip

Suitable for removing red, yellow, brown, and other light-colored tattoos

User-friendly screenCarbon Peel

Advantages

  • Powerful –Featuring a true 450ps laser.
  • Flexible –360° rotatable joint reduces energy loss and makes it easier to use.
  • High Energy –High energy can reduce tattoo removal times by 40%. Furthermore, it delivers up to 10 times the energy of 1064nm, 755nm, and 532nm wavelengths (200–2000 MJ).
  • Spot Size –Ranging from 2mm to 10mm, it meets a wide range of treatment requirements. The large spot size maintains deep penetration into the dermis, easily dispersing embedded ink particles.
  • Three wavelengths –1064nm, 532nm, and 755nm – effectively resolve nine common colors, from light orange to deep black.
  • Output Speed –Frequency controllable from 1 to 10 Hz, pulsed output.
  • Safety –If the ratio between energy and frequency does not meet the safe output energy density, the system will automatically adjust to a safe state.
  • No consumables required
  • Intuitive, easy-to-use screen
pico laser treatment before and after

Before & After

Technical Specifications
Wavelength1064nm / 532nm / 755nm
Energy Density (max)10-2000mj
Pulse duration≤450ps
Repetition Rate1-10Hz adjustable
Spot size2-10mm adjustable
Light guidance beamRed guide light with 650nm
Cooling SystemClosed cycle water + air cooling system
Control screen10.4 inch TFT color Touch screen
Power requirement220V / 110V 50-60Hz
Weight90kgs
Package size125*63*125.5cm

FAQ ofPicosecond laser tattoo removal machine

▶ Why choose a picosecond laser tattoo removal machine?

Picosecond laser technology is renowned for its ultra-short pulse duration, which more effectively fragments ink particles while minimizing thermal damage to the surrounding skin. It's also safer, faster, and more comfortable than Q-switched lasers. Professional tattoo removal machine is an excellent option for expanding your services, supporting noticeable results with minimal downtime.

▶ Can your clients benefit from laser tattoo removal?

Of course. Clients can enjoy effective tattoo removal with fewer treatments, improved comfort, and reduced risk of scarring. Laser tattoo removal can remove tattoos of all colors and skin types, making it a versatile and reliable solution for modern beauty treatments.

▶ How can a tattoo removal machine benefit your spa or clinic?

Adding a laser tattoo removal machine to your spa or clinic expands your treatment offerings, attracts a broader client base, and increases your revenue potential. With growing demand for tattoo removal and skin pigmentation treatments, a pico laser machine positions your business as a modern, technology-driven provider of high-demand aesthetic solutions.

▶ What is the average ROI for a tattoo removal device?

With rising demand for non-invasive treatments, most clinics and spas see ROI within 6–12 months after introducing a tattoo removal laser machine, depending on local market pricing and customer volume.

▶ How to purchase a professional tattoo removal laser machine from a reliable manufacturer?

Working directly with a trusted manufacturer guarantees better pricing, stable supply, and technical assistance. Contact our sales team now.

Configuration notice: Specifications, accessories, interface options and permitted uses vary by destination market and confirmed configuration. The Proforma Invoice, configuration sheet and model-specific documents supplied before payment take precedence.

Treatments

Build your treatment menu.

Final configuration and supplied accessories are confirmed in the quotation.

Specifications

Hally II · Overview

Final configuration and supplied accessories are confirmed in the quotation.

Hally II
Control screen
10.4 inch TFT color Touch screen
Cooling System
Closed cycle water + air cooling system
Energy Density (max)
10-2000mj
Light guidance beam
Red guide light with 650nm
Package size
125*63*125.5cm
Power requirement
220V / 110V 50-60Hz
Pulse duration
≤450ps
Repetition Rate
1-10Hz adjustable
Spot size
2-10mm adjustable
Wavelength
1064nm / 532nm / 755nm
Weight
90kgs
