High-Power Laser Emitters for Diode Laser Machines

Coherent USA Laser Bars | Multiple Wavelengths | 500W–1600W Options

Our diode laser emitters are core components used in professional hair removal and medical aesthetic machines. Sourced from Coherent (USA), these high-reliability laser bars are known for their stability, precision, and long operational life. We offer a wide range of configurations, including power levels from 500W to 1600W, multiple bar counts, and various wavelengths such as 808nm, 810nm, 755nm, 940nm, and 1064nm to suit different treatment needs.

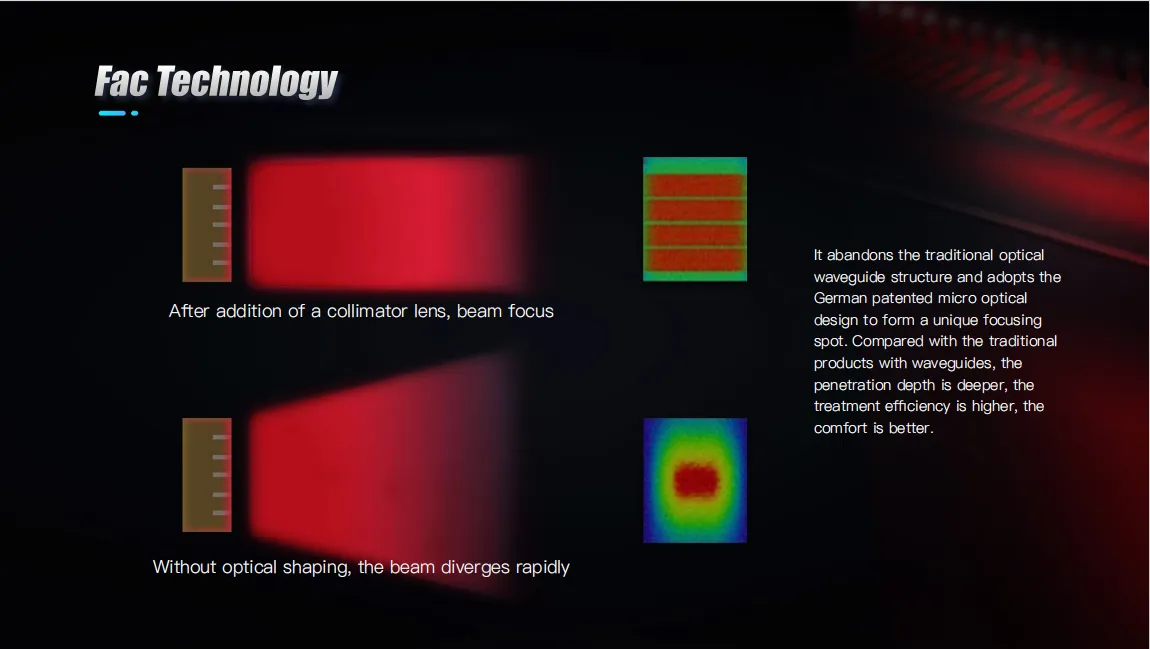

FAC technology

The FAC (Fast Axis Collimator) employs principles of optical refraction or reflection to correct and collimate the laser beam's divergence along the fast axis. According to the laws of geometrical optics, by selecting lenses with appropriate curvature radii and focal lengths, the light rays passing through the lens can meet specific propagation conditions, thereby reducing the beam's divergence and achieving beam collimation.
By using FAC technology, the Diode laser can emit parallel and precise laser light, improving treatment efficiency while reducing patient discomfort.

Advantages

Genuine Coherent Laser Bars (USA)

High-efficiency emitters with precise beam quality and consistent energy output, suitable for continuous use in clinical environments.

Flexible Power Configurations

Available in multiple power levels:

500W / 800W / 1000W / 1200W / 1600W

Each power level is achieved by combining bars of 50W or 100W output

Customizable Bar Combinations

Choose from:

5-bar, 8-bar, 10-bar, 12-bar, and 16-bar modules

Each bar can be 50W or 100W depending on the desired total output

Multiple Wavelength Options

808nm / 810nm – Standard for most skin types

755nm – More effective for lighter skin and fine hair

940nm / 1064nm – Suitable for deeper penetration and darker skin tones

Stable Performance Under High Load

Designed for continuous operation in SHR, stack, and single-pulse modes, with proper heat management.

Long Working Life

Engineered for durability, with proper cooling these emitters can last for millions of pulses in clinical use.

Specifications

Item	Description
Power Range	500W, 800W, 1000W, 1200W, 1600W
Bar Options	5-bar, 8-bar, 10-bar, 12-bar, 16-bar (50W or 100W per bar)
Wavelength Options	755nm, 808nm, 810nm, 940nm, 1064nm
Laser Type	CW Diode Laser (Continuous Wave)
Material Source	Coherent Laser Bar – USA Origin
Cooling Method	Water-cooled or TEC (depending on system integration)
Beam Quality	High precision, suitable for professional clinical results
Size / Dimensions	Custom sizes available based on handpiece design or OEM requirements
Lifespan (Estimated)	>10 million pulses (with proper cooling and usage)

Integration & Custom Orders

Our laser emitters are available for custom handpiece designs or as replacement parts for diode laser machines. We provide technical assistance for integration into both single-wavelength and multi-wavelength systems. Custom bar layouts and wavelength combinations can be configured based on your clinical or manufacturing needs.

Applications

Hair Removal Treatments

Integrated into diode laser handpieces for long-term hair reduction across various skin and hair types.

Skin Rejuvenation and Vascular Treatments

Specific wavelengths like 755nm or 1064nm can be used for skin tightening and vascular lesion reduction.

OEM and R&D Integration

Suitable for device manufacturers, repair services, and laboratories building or upgrading diode laser systems.

Ordering Information

To place an order or request a quotation, please specify the required parameters:

Total Output Power (W)

Preferred Wavelength (nm)

Number of Bars

Power per Bar (W)

Any specific connector or cable requirements

Contact our technical sales team to ensure the correct configuration is selected for your machine and application.
