QM-10600
CO₂ Fractional Laser
A fractional CO₂ platform with an articulated delivery arm and configurable applicators. Explore scanning patterns, supplied accessories and model-specific documentation.
1 / 6

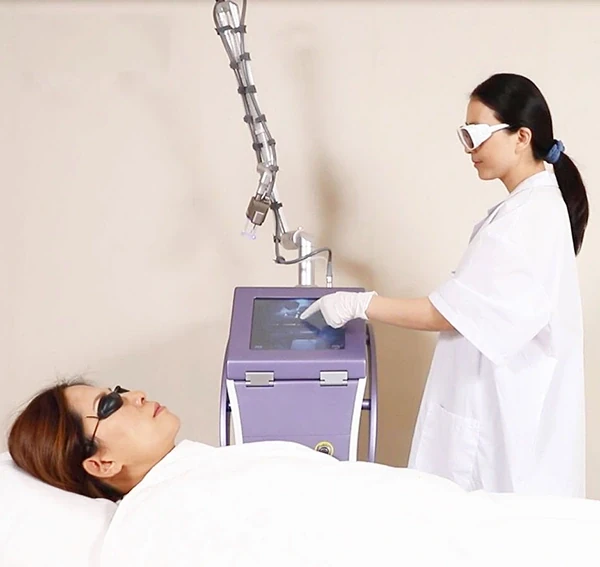

Device demonstration
Configuration options

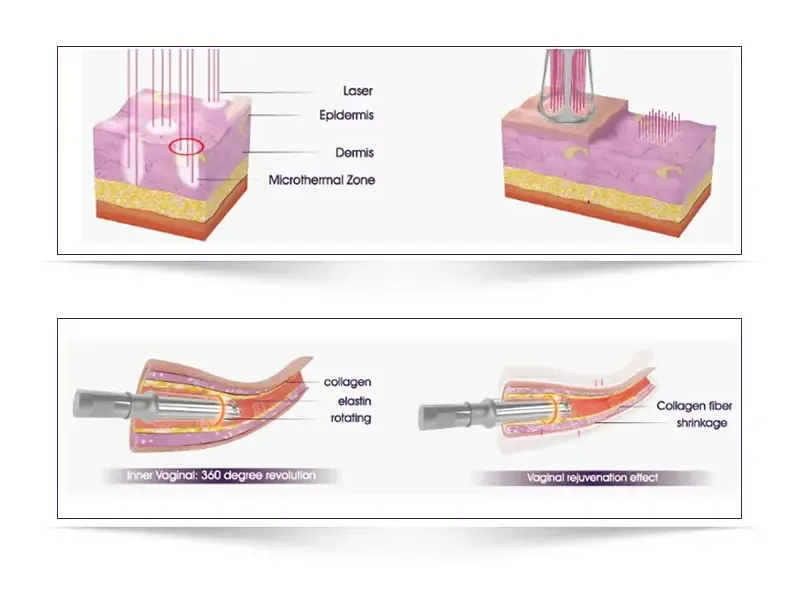

Fractional delivery. A configurable platform.
The model specification lists a 10.6 μm CO₂ source and a seven-joint articulated arm. Review the supplied applicators and intended applications with the model documentation before ordering.
Specifications
Configuration options
Details that belong in your quotation.

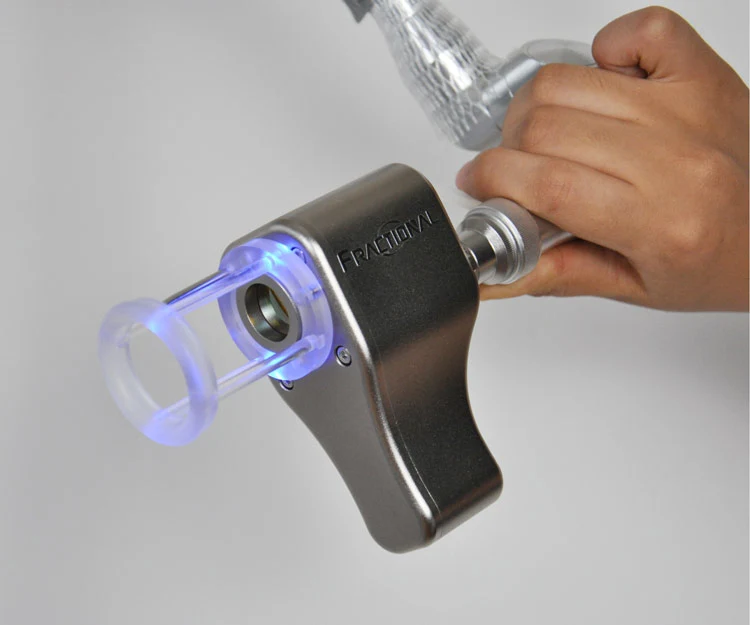

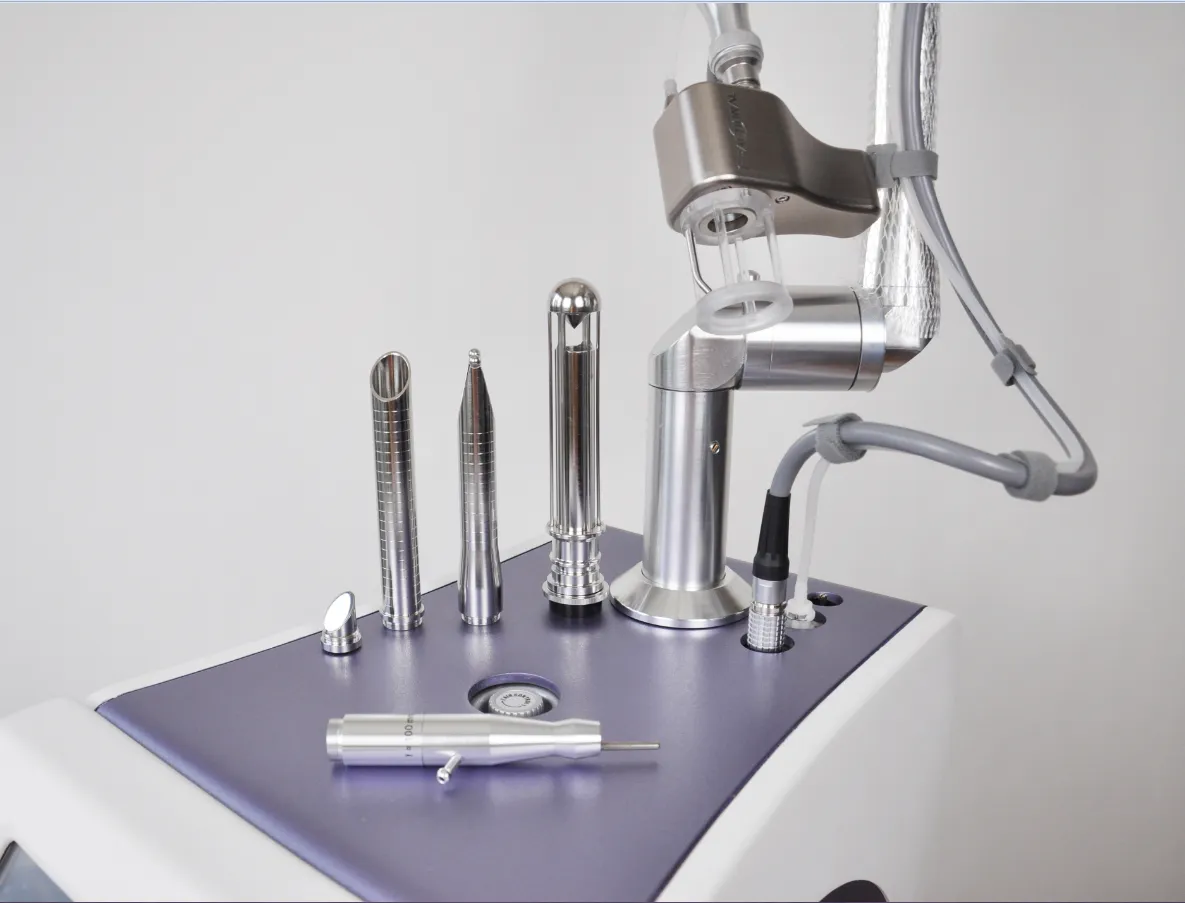

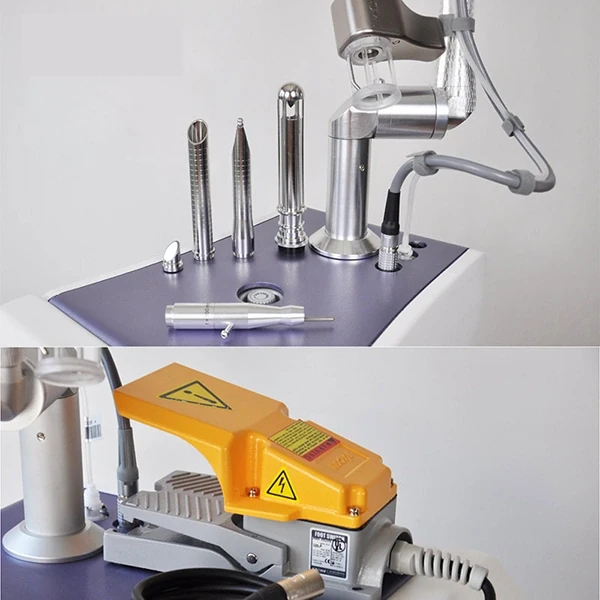

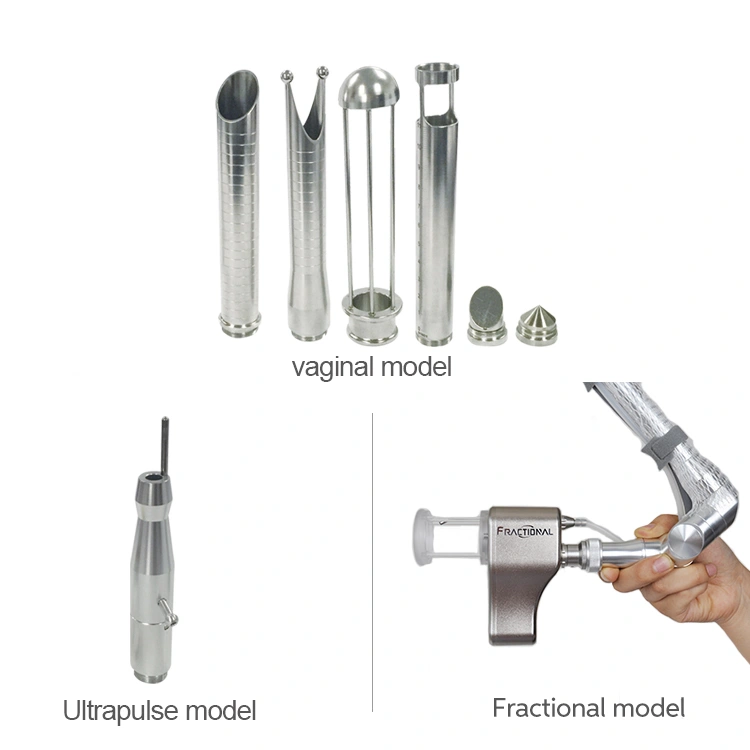

Compare the applicators, light-guide arm, scanning options and supplied accessories. Confirm the exact configuration, training arrangements and available files for your market.
SpecificationsTreatments
Build your treatment menu.
Final configuration and supplied accessories are confirmed in the quotation.
Specifications
QM-10600 · Overview
Final configuration and supplied accessories are confirmed in the quotation.
- Aiming Beam
- Less than 2Mw, 635nm red semiconductor laser

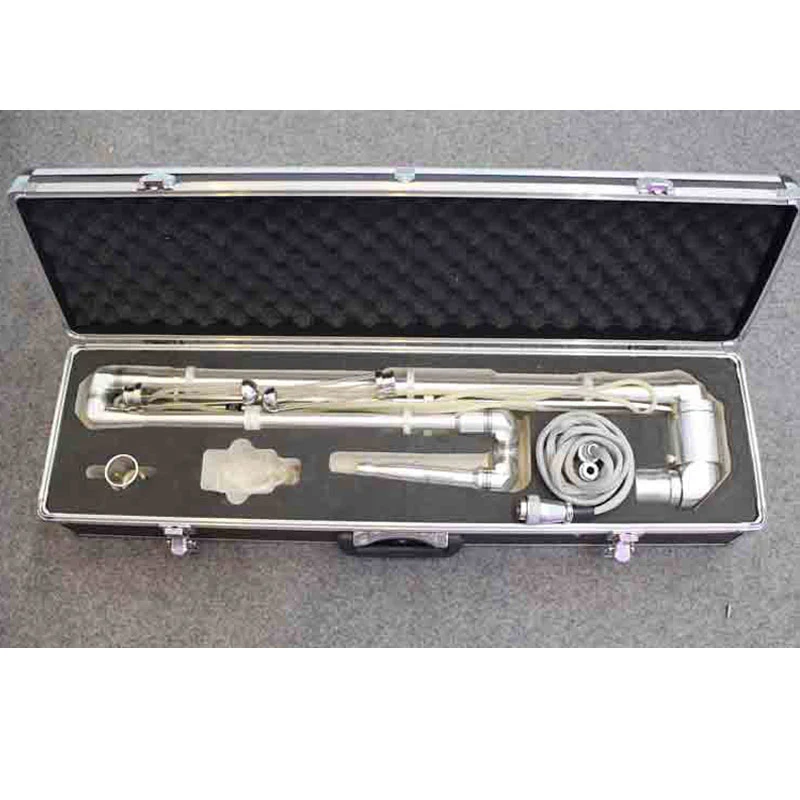

- Beam Transport Device
- 7-joint articulated optical arm
- Beam divergence Angle
- 0.3mrad
- Condenser Focus
- F=50mm
- Cooling System
- Air
- Dimension of Machine
- 55x45x108cm
- Display
- 10.4 inch color touch LCD screen
- Gross Weight
- 72kgs
- Interval
- 0-6s
- Laser Apparatus
- Sealed off laser unit stimulated by direct current
- Laser type
- RF Tube (USA Coherent)
- Net Weight
- 46kgs
- Output power
- 1-60W
- Overlap
- 1-20 times
- Package Standard
- 2 cases standard: Case 1: 68x56x125cm; Case 2: 80x40x30cm
- Power Supply
- 220V/110V
- Pulse Duration
- 0.1-10 ms
- Pulse energy
- 10mj to 130mj is optional for each dot
- Pulsed Radio Frequency
- 0.530W
- Repeat
- 1-5000 ms
- Scan Graphic Size
- 0.1x0.1mm ~ 20x20mm

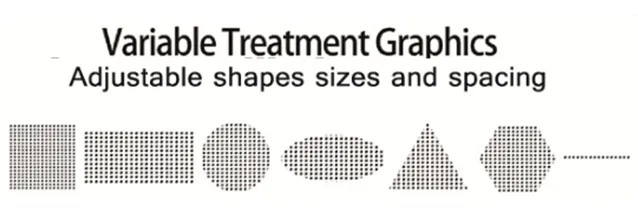

- Scan Graphics
- Square, Rectangle, Circle, Triangle, Ellipse, Hexagon, Line It can also be freely deformed based on the above

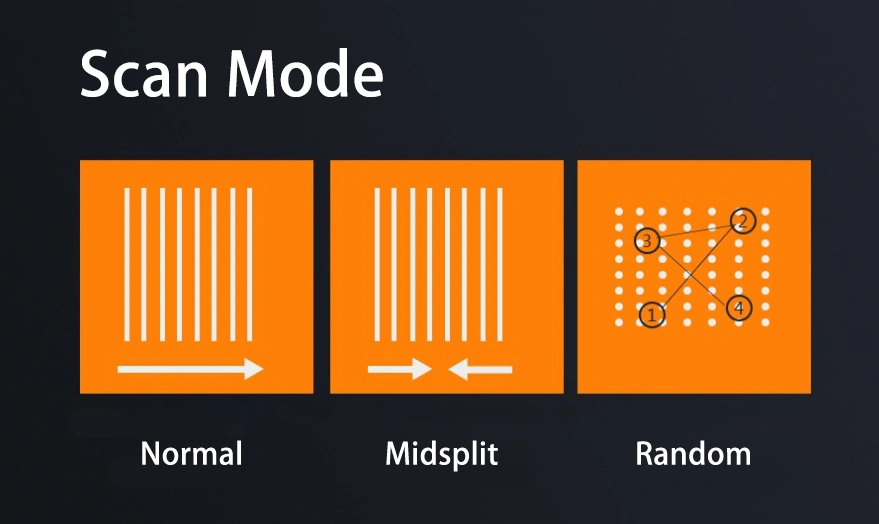

- Scan mode (3 modes)
- Normal, Midsplit, Random
- Spot Distance
- 0.1-2.6 mm
- Spot Size
- 0.01mm at the focus
- System & Probes
- 3 systems, 5 probes
- Wavelength
- 10.6μm, far-infrared laser
- Working State
- Hyper-pulsed mode
Documents & support
Documents & support
Review available model documents and discuss training, warranty and spare-part arrangements before ordering.
FAQ
Questions before you order
Which configuration fits my needs?＋
Share your application, destination country and planned service menu. We will help compare the available model options.
What is included in the quotation?＋
Confirm the exact model, handpieces, accessories, documentation and delivery arrangements in the written quotation.
