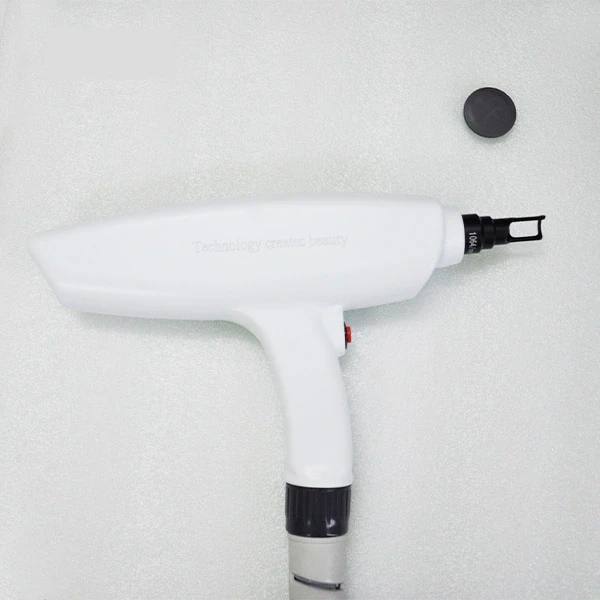

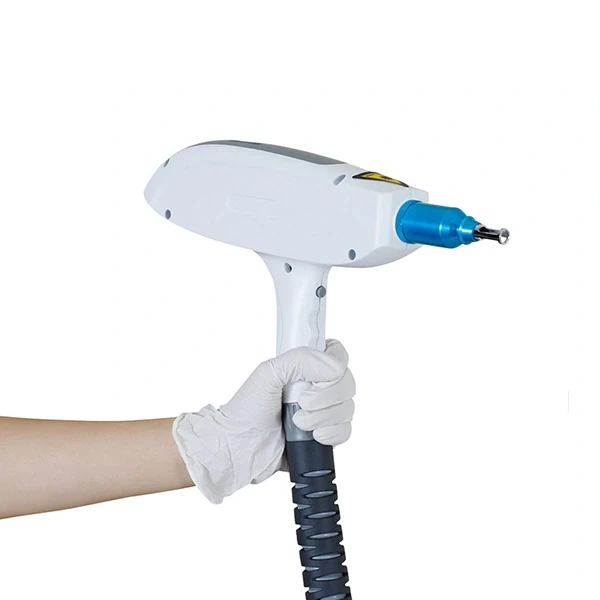

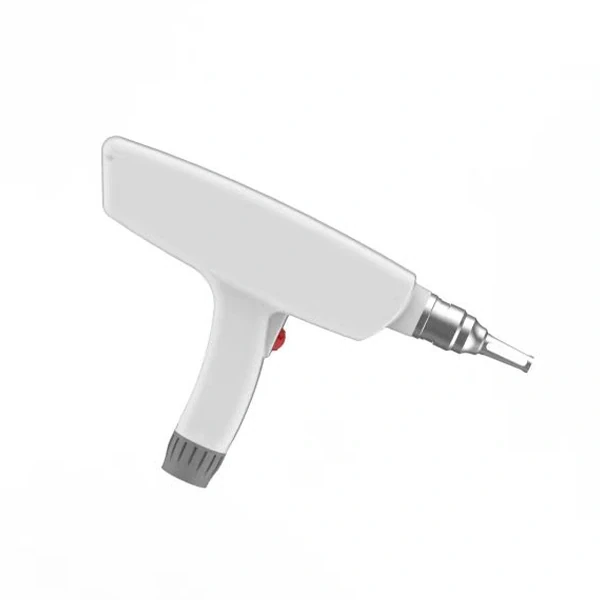

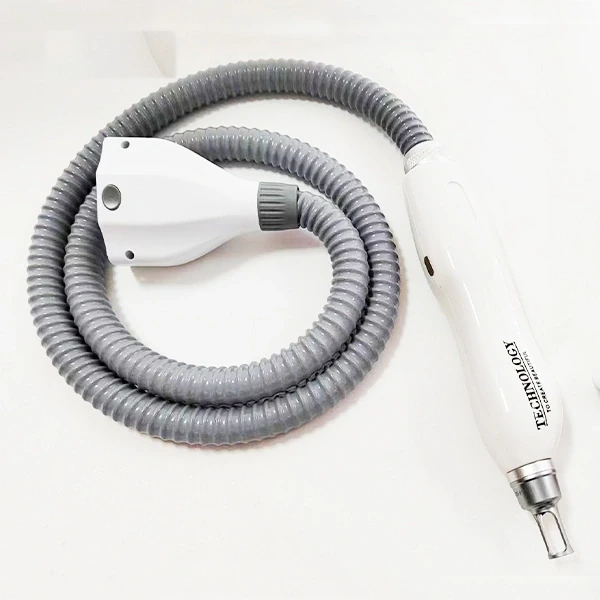

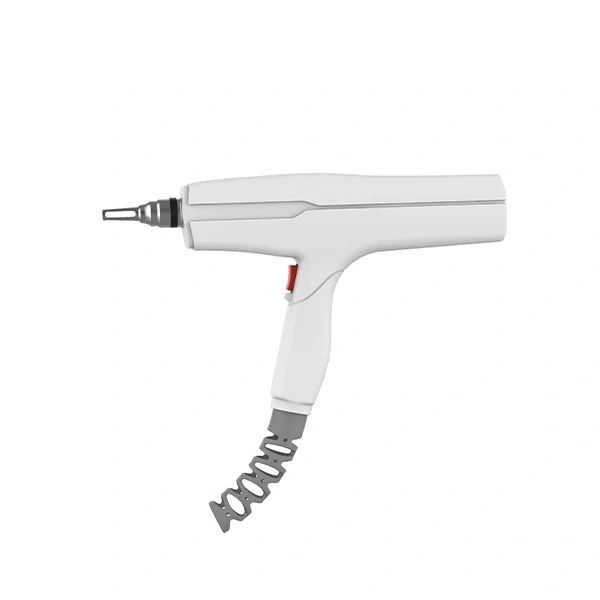

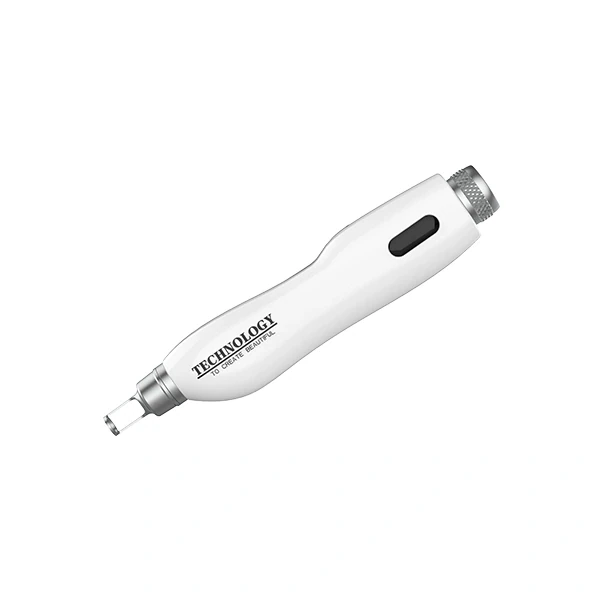

Nd:YAG Laser Handpiece for Q-Switched Nd YAG Laser Systems
The Nd:YAG laser handpiece is a critical component of Q-switched or picosecond laser systems used in tattoo removal, pigmentation therapy, and skin rejuvenation. It contains the laser crystal, resonant cavity components, and delivery optics required for generating and applying laser light, enabling the precise delivery of high-intensity laser pulses to targeted skin layers.
Our Nd:YAG handpieces are built with high-purity laser rods, good cavity structures, and well-aligned optics. Designed to support 1064nm, 532nm, and 1320nm wavelengths, they ensure stable energy output and consistent clinical results.
High-Quality Nd:YAG Laser Rod
The handpiece integrates a laser rod made of neodymium-doped yttrium aluminum garnet (Nd:YAG), known for its excellent thermal and optical properties. The rod is precisely aligned to support high peak energy output with minimal thermal distortion.
Efficient Resonator (Cavity) Design
The laser cavity features high-reflectivity mirrors and advanced cooling integration to maintain consistent beam quality during repeated firing. The design ensures stable energy buildup and efficient laser pulse formation.
Multiple Wavelength Compatibility
Supports 1064nm for deep pigmentation and tattoo ink, 532nm for superficial pigment issues and red ink, and 1320nm for carbon peeling or skin toning treatments.
Interchangeable Treatment Tips
Handpieces are compatible with a range of tips, including fractional tips, focus tips, and designed for improved treatment comfort treatment tips, enabling flexible use for different skin conditions.
Robust Optical Alignment
Internal lens and crystal alignment is designed for minimal energy loss, clear beam focus, and reduced pulse instability over time.
Internal Design and Components
Laser Crystal Assembly:
Nd:YAG crystal rod with precisely ground and coated ends
Mounted in secure, thermally stable housing
Designed for efficient pumping and lasing action
Resonant Cavity Design:
High-reflectivity rear mirror
Partial reflectivity output coupler
Precision aligned optical path
Q-switch mechanism for nanosecond pulses
Delivery Optics:
Focusing lens assembly for spot size control
Beam shaping components
Protective output window
Safety filters and sensors
Tattoo Removal
1064nm: black and dark-colored ink
532nm: red, orange, yellow ink
Pigmented Lesions
Melasma, age spots, freckles, sun damage
Carbon Peeling and Skin Brightening
1320nm with carbon cream for deep pore cleansing and collagen stimulation
Skin Texture and Pore Refinement
Used in combination with fractional tips for light resurfacing
Nd:YAG Laser Handpiece FAQ
▶ What is the typical lifespan of an Nd:YAG handpiece?
With proper maintenance, the handpiece typically lasts 3-5 years in clinical use, depending on treatment volume and care.
▶ Can this handpiece generate both 1064nm and 532nm wavelengths?
Models with frequency-doubling KTP crystals can produce 532nm output. Please specify your wavelength requirements when ordering.
Ordering Information
Required Information for Ordering:
Laser system manufacturer and model
Preferred connector type
Compatibility verification with your specific laser system is required before purchase.
