QM-120(IPL+Diode laser)

Name: Professional Hair Removal Machine
Brand: QM
SKU: QM-120(IPL+Diode laser)

Professional Hair Removal Machine

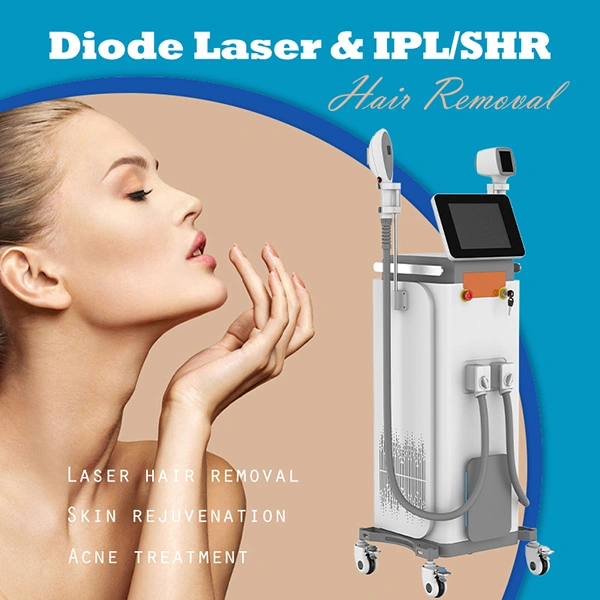

Diode Laser; IPL/SHR · Hair Removal; Skin Rejuvenation; Spider vein removal

Request a Quote WhatsApp

1 / 6

QM-120(IPL+Diode laser)

What would you like to check?

Configuration optionsReview configuration and version SpecificationsGo to the model specification table Documents & supportRequest model documents and support

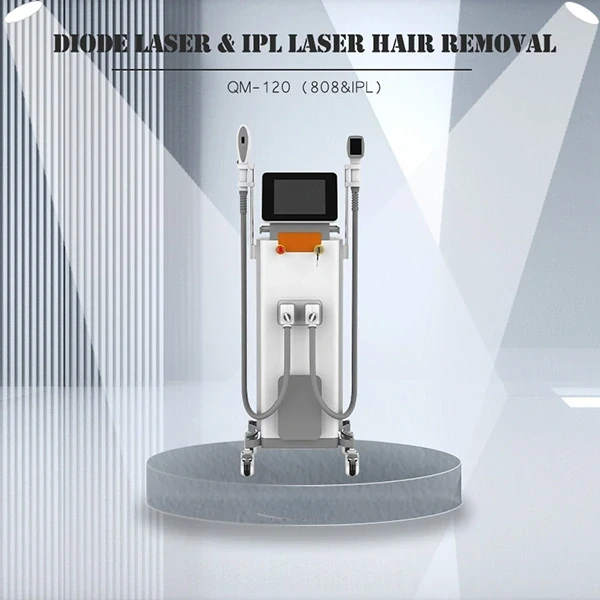

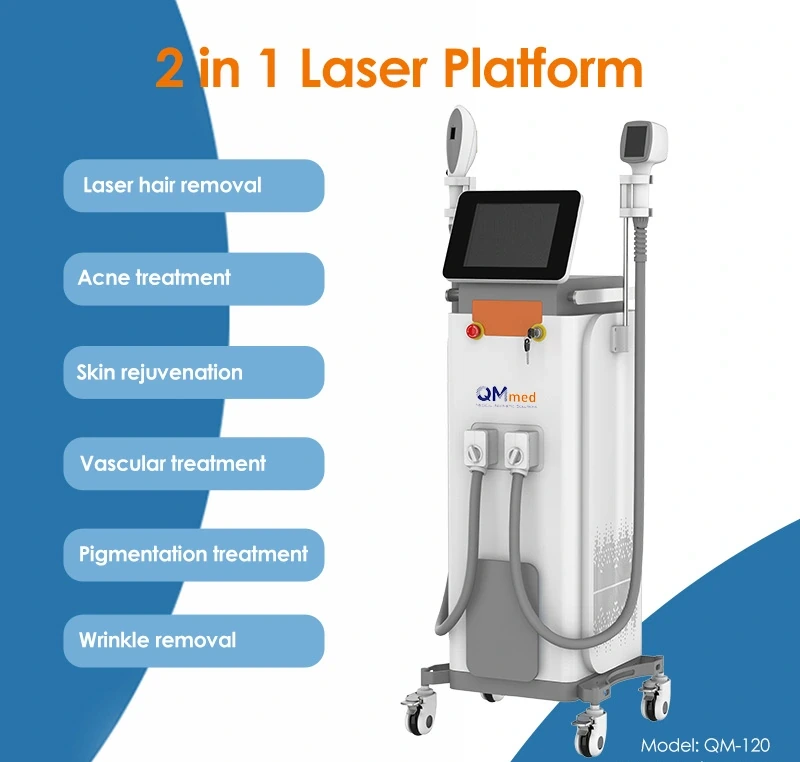

QM-120 (IPL + Diode) Hair Removal System

IPL + Diode laser 2 in 1 Hair Removal System–the professional professional IPL machines and intense pulsed light machines for sale, designed for modern clinics and beauty centers.

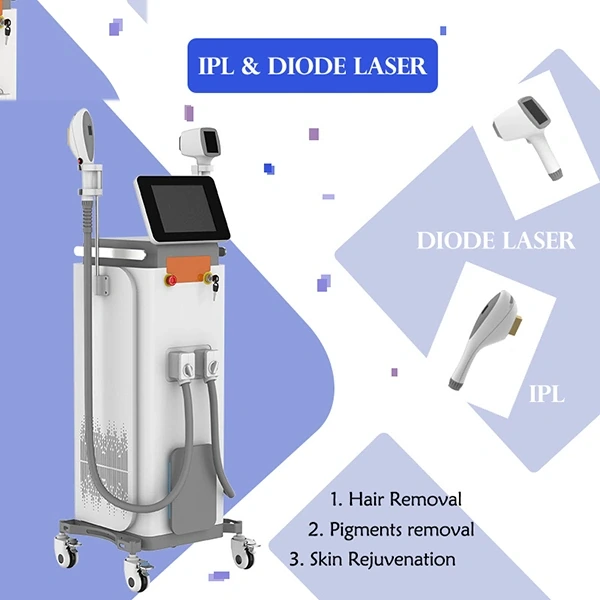

The QM-120 combines IPL and diode technologies, 2 in 1 Hair Removal System, designed for modern clinics and beauty centers. As a professional IPL machine, it offers multiple filters and pulse modes for treating various skin concerns, the diode laser delivers precise, long-lasting results for diode laser epilation hair removal. Whether used for full-body treatments or targeted leg super hair removal, the QM-120 ensures speed, comfort, and efficiency.

For clinics looking for intense pulsed light machines for sale that also include a diode option, the QM-120 is a versatile, investment-friendly choice that adapts easily to diverse treatment needs and patient profiles.

Aplication

QM-120 integrates IPL (Intense Pulsed Light) and 808nm Diode Laser technologies into one system, providing a multifunctional and comprehensive aesthetic solution.

It can not only delivery highly efficient and long-lasting hair removal results, but also offer overall improvement for a variety of skin concerns.

808nm Diode Laser Hair Removal

Penetrates deep into the hair follicle root to effectively destroy follicle structures. Suitable for multiple areas including the face, underarms, arms, legs, and bikini line. The treatment is comfortable, results are long-lasting and stable, and it adapts well to different skin types and hair textures.

Pigmentation Removal

Targets and breaks down excess melanin deposits in the skin, effectively reducing freckles, sunspots, melasma, and other pigment-related issues for a more even and radiant skin tone.

Wrinkle Removal

Stimulates collagen regeneration in the dermis through photothermal effects, improving fine lines and wrinkles, restructuring skin texture, and enhancing firmness and elasticity for a rejuvenated appearance.

Skin Whitening & Rejuvenation

Improves dull and rough skin, brightens overall complexion, minimizes pores, and restores smoothness and refinement, leaving the skin with a natural, healthy glow.

Acne Treatment

Utilizes photodynamic effects to eliminate acne-causing Propionibacterium acnes, regulate sebum secretion, reduce inflammation, and help the skin regain a clear, refreshed, and healthy condition.

How it work?

IPL technology

IPL, short for Intense Pulsed Light, utilizes broad-spectrum pulsedlight technology for skin treatment. Unlike traditional lasers, IPLdevices are capable of emitting beams of light at multiplewavelengths, making them more adaptable in treatment. IPLtechnology uses the principle of selective photothermal therapyto precisely target specific pigments (such as melanin) or vascularpigments (such as hemoglobin) in the skin, achieving various effectssuch as skin whitening, skin rejuvenation, pigmentation removal,hair removal, and wrinkle removal.

IPL is widely used in the beauty field and can treat issues such asacne, blemishes, redness, and enlarged pores, and is particularlyadvantageous for facial hair removal. It is a non-invasive, comfortabletreatment with a short recovery period, suitable for all skin tonesand types.

Diode Laser Technology
Diode Laser is a widely used professional hair removal technologyworldwide. Its principle is to utilize a specific wavelength of laser toprecisely target the melanin within hair follicles, rapidly generatingthermal energy to destroy the follicle structure, thereby achievinglong-lasting hair removal results.

Among the various wavelengths, the 808nm diode laser is widelyrecognized and applied due to its optimal penetration depth,concentrated energy, high efficiency, and excellent safety.The QM-120 diode laser handle is equipped with US Coherent laser,supporting stable and efficient energy output. It features a TECcontact cooling system that continuously cools the epidermisduring treatment, significantly reducing heat sensation andsupporting a safe and comfortable experience. Additionally, the built-inmini screen on the handle allows operators to adjust parameters directly,making operation more intuitive and convenient.

The QM-120 is suitable for a wide range of skin types and treatment areas. Whether for fine facial hair, coarse underarm hair, or leg super hair removal, it delivers fast, safe, and long-lasting diode laser epilation hair removal results, making it an ideal choice for modern beauty centers and medical aesthetic clinics.

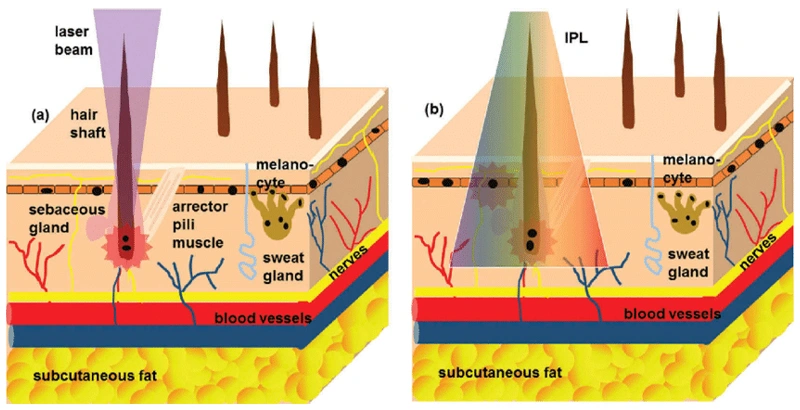

Working Principle

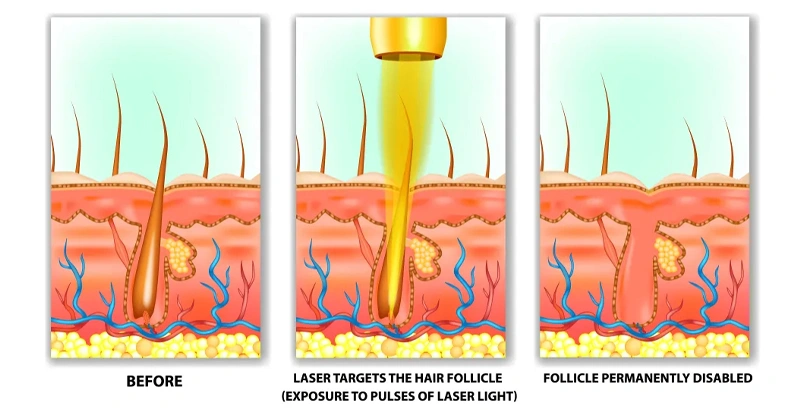

Diode laser

Diode Laser works on the principle of selective photothermolysis.Since hair follicles and hair shafts are rich in melanin, the 808nmwavelength is strongly absorbed by melanin and converted intoheat energy. This heat is conducted deep into the follicle, causingthermal damage to the hair papilla, which loses its ability to nourishthe hair matrix. As a result, the follicle becomes inactive, achievinglong-lasting hair removal.

It is performed using established technology triple-wavelength diode lasertechnology at 808nm.Energy penetrates deeply into the dermis

with high average power and a rapid repetition rate of 10 pulsesper second, heating the hair shaft and follicle without depletingsurrounding oxygen-rich tissue. Furthermore, contact surfacecooling technology applied to the sapphire tip eliminates thermaleffects caused by the light energy, significantly enhancing treatmenteffectiveness and safety.

IPL

The light source of IPL is a high-powered xenon lamp. By usingfilters, it delivers multi-band, broad-spectrum, and non-continuousintense pulsed light. The emission is delivered in a face-to-facemanner, and the longer the wavelength, the deeper the penetration.

Based on the principles ofselective photothermolysisandbiostimulation,

IPL effectively addresses problems such as vascular lesions (redness),

pigmentation, and unwanted hair.

The IPL treatment wavelength range of QM-120 is 400nm–1200nm,enabling flexible solutions for various skin concerns while supportingsafety and effectiveness.

1. Hair Removal (640–1200nm, 750–1200nm)

Principle: Selective Photothermolysis
Through the selective absorption of intense pulsed light (IPL) by melanin in the hair shaft and follicle, the light energy directly targets the melanin while managing exposure to the skin or sweat glands. This process destroys the follicular matrix cells and hair shaft, causing the dermal papilla to shrink and lose activity, thereby inhibiting hair regrowth. By disrupting the hair follicle growth environment, long-term hair reduction can be achieved.

2. Skin Rejuvenation (530–1200nm, 590–1200nm)

Principle: Photobiostimulation
The broad-spectrum light penetrates deep into the dermal layer, producing photothermal and photochemical effects that stimulate abundant collagen production and the reorganization of elastic fibers. This restores skin elasticity and radiance, reducing or eliminating fine lines and wrinkles while minimizing pores.

Photobiostimulation Effect:
After the light energy penetrates the skin, it stimulates and activates the skin’s self-repairing functions through thermal effects, promoting the regeneration and rearrangement of collagen and elastic fibers, thereby achieving wrinkle reduction and pore refinement.

3. Pigmentation Removal (530nm, 590nm)

Principle: Selective Photothermolysis
IPL precisely targets pigmented lesions, breaking down excess melanin deposits, which are then gradually metabolized and eliminated by the body.

Cause of Pigmentation: Melanin deposition.

4. Acne Treatment (430/480–1200nm)

Principle: Selective Photothermolysis
IPL generates high temperatures that rapidly kill acne-causing bacteria (Propionibacterium acnes), unclog pores, shrink sebaceous gland openings, and reduce sebum secretion. This destroys the anaerobic bacterial environment, thereby alleviating acne.

Cause of Acne: Excessive sebaceous gland secretion, clogged pores, and bacterial growth leading to inflammation.

5. Vascular Lesion / Redness Removal (Superficial 530nm / Deep 590nm)

Principle: Selective Photothermal Effect
Specific wavelengths of IPL are absorbed maximally by hemoglobin in small blood vessels, causing coagulation and collapse of the capillaries while managing exposure to surrounding skin tissue.

Cause of Redness: Capillary hyperplasia.

Advantages of QM-120 -professional ipl machine&diode laser epilation hair removal machine

QM-120 combines IPL and diode laser technologies into one system, not only providing effective hair removal but also addressing various skin concerns such as skin whitening, rejuvenation, pigmentation reduction, wrinkle improvement, and overall skin texture enhancement. Compared with single-function devices, QM-120 offers beauty institutions and medical aesthetic centers a multifunctional, one-stop solution for both hair removal and comprehensive skin treatments.

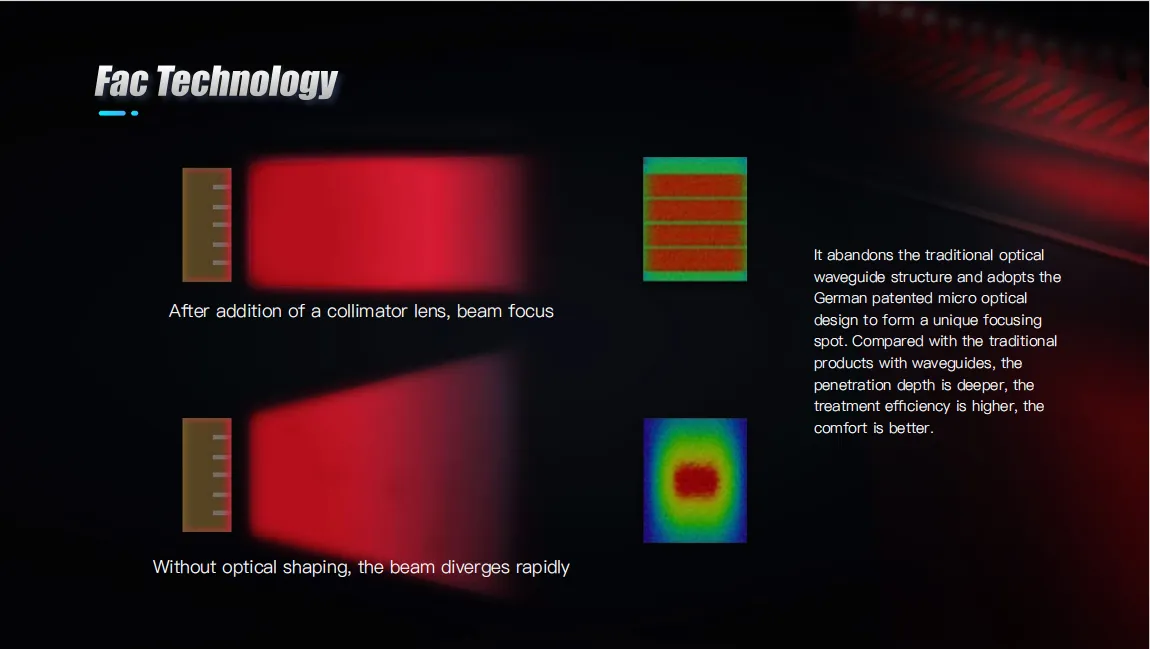

☆FAC technology:

The FAC (Fast Axis Collimator) employs principles of optical refraction or reflection to correct and collimate the laser beam's divergence along the fast axis. According to the laws of geometrical optics, by selecting lenses with appropriate curvature radii and focal lengths, the light rays passing through the lens can meet specific propagation conditions, thereby reducing the beam's divergence and achieving beam collimation.
By using FAC technology, the Diode laser can emit parallel and precise laser light, improving treatment efficiency while reducing patient discomfort.

☆Premium Core Components

Laser Source: Equipped with USA Coherence laser, supporting high quality and long lifespan, with more than 40 million shots. Laser bars available in 50W and 100W options.
Power Supply: High-quality MEAN WELL power supply guarantees stable energy output; relays from Schneider and other top international brands ensure reliability and safety.
Xenon Lamp: Imported from the UK, with a lifespan of 1,000,000–2,000,000 shots.
Capacitors: Two 22,000uf HCG capacitors deliver powerful and stable energy, with a maximum output of 50J/cm².

☆Advanced Cooling System

Triple Cooling: Air cooling + water cooling (TEC) for efficient heat dissipation and extended device lifespan.
Independent Cooling Tip: Dedicated 808/808+ TEC contact cooling ensures maximum comfort during treatment.
Efficient Heat Dissipation: Stainless steel & copper radiator + condenser rapidly cool circulating water for continuous stable operation.
Enhanced Comfort: Sapphire crystal lens combined with thick aluminum radiator and large cooling fans deliver excellent heat dissipation, supporting designed for improved treatment comfort treatments.

☆Flexible Operation & User Experience

Selectable Spot Sizes: 15*50mm large spot for faster treatments, and 12*36mm small spot for precision areas.
Smart Handpiece Design: Built-in mini screen for direct parameter adjustment, making operation more intuitive.
Human-Centered Design: From handpiece to interface to body structure, every detail is optimized for operator convenience and patient comfort.

☆OEM/ODM Customization

Available for tailored development to meet various market demands.

Before&After

Underarm hair removal

Leg hair removal

IPL Photorejuvenation

QM-120 (IPL + Diode) Hair Removal SystemFAQ

▶ Can people with sensitive skin undergo IPL photorejuvenation?
If the skin is very sensitive, with acute exudation or obvious erythema, treatment is not suitable immediately. However, mildly sensitive skin can be improved and conditioned through IPL photorejuvenation.

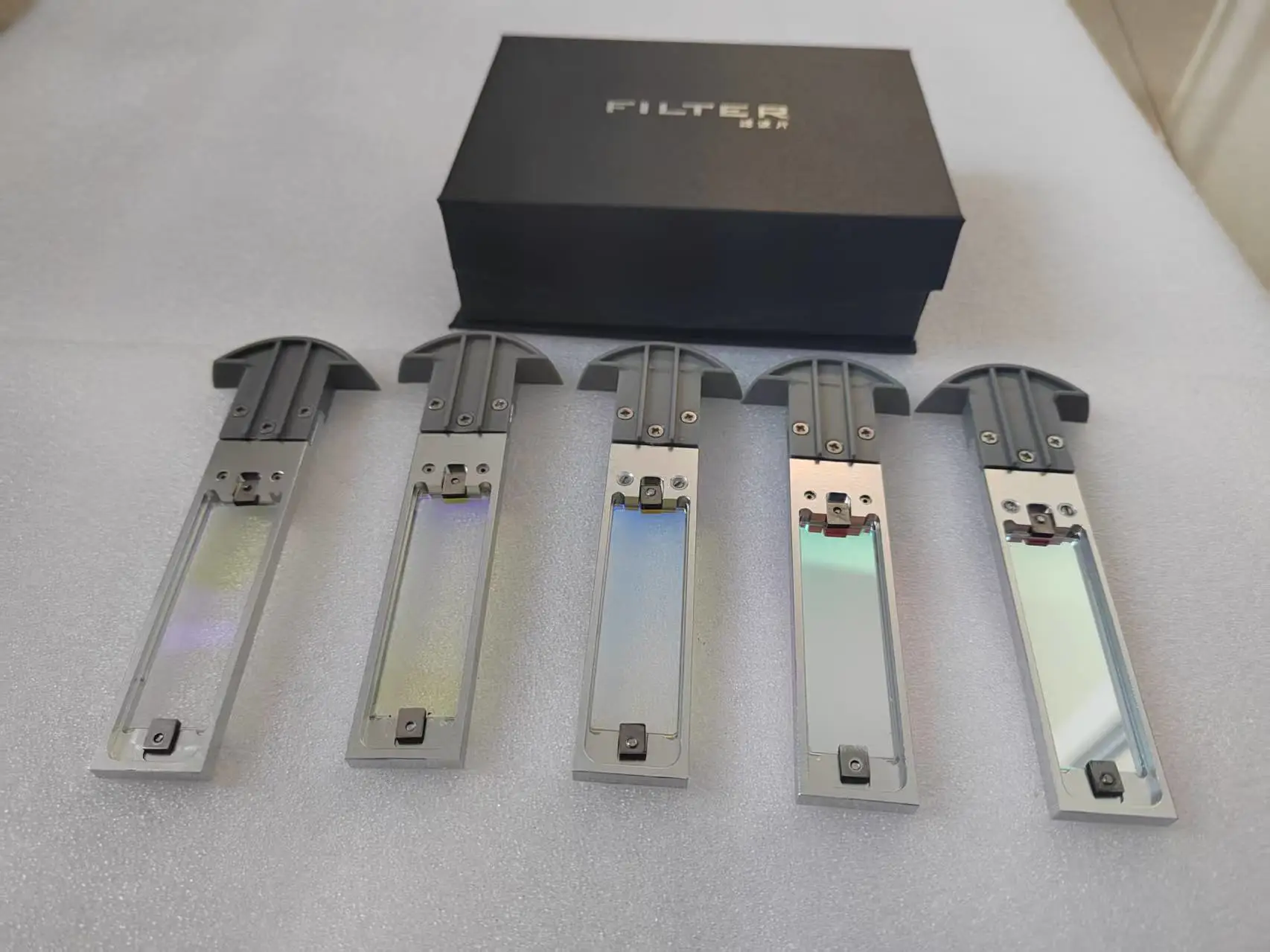

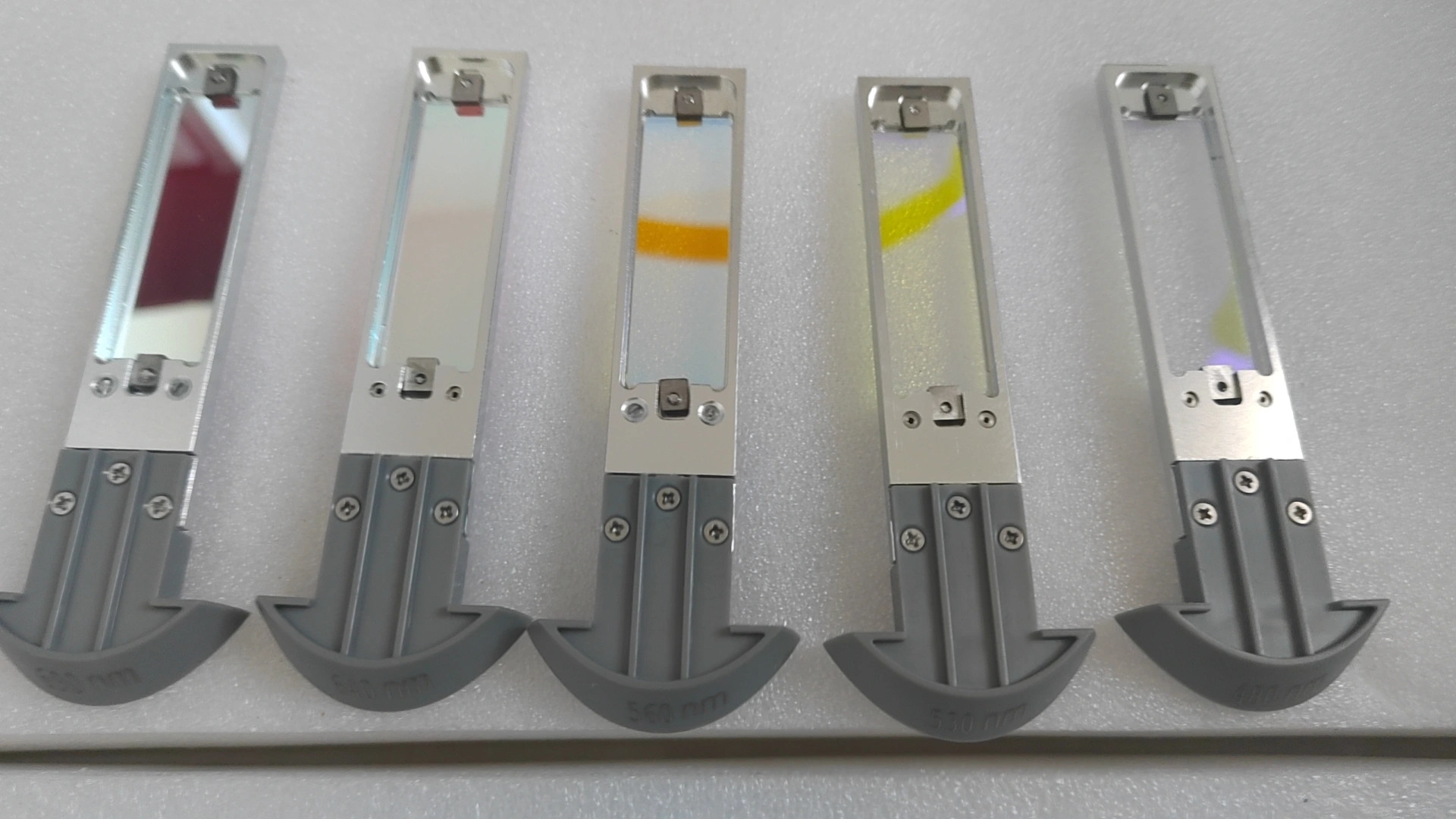

▶What treatments can different filters be used for?

Hair removal: 640/690/750–1200nm
Skin rejuvenation, vascular lesions, pigmentation removal: 530/590–1200nm
Wrinkle reduction: 640/690–1200nm
Acne treatment: 430/480–1200nm

▶ Does hair removal damage hair follicles or sweat glands? Why?
No. IPL (Intense Pulsed Light) only targets melanin in the hair papilla. When exposed to light, melanin absorbs heat, causing the papilla to shrink, which results in hair removal. Sweat glands do not contain melanin, so they are unaffected. Therefore, IPL hair removal is a intended for trained professional operation method.

▶ How many sessions are needed to treat freckles? Will they come back?
Typically, 3–5 sessions are required per course, and satisfactory results can usually be achieved after one course. However, the number of sessions may vary depending on individual differences and desired results.
IPL works through the principle of selective photothermolysis, where melanin in freckles absorbs heat and breaks down. Some of the pigment is metabolized by the lymphatic system, while some rises to the surface and naturally sheds. IPL light can also penetrate to the basal layer to remove pigment at its source, providing stable results without recurrence.

▶ Why is 808nm diode laser hair removal considered the a suitable option?
The 808nm laser uses low-voltage output and a specific wavelength that directly targets the hair follicle, minimizing damage to the surrounding skin.
Even if accidentally exposed to the eyes during operation, it generally does not cause serious harm. In contrast, other lasers (such as the 755nm long-pulse laser) generate high voltage instantly and may cause irreversible eye damage if mishandled. This is why the 808nm diode laser is widely regarded as one of the a suitable option hair removal methods.

▶ Is the treatment painful? Is anesthesia required?
The 808nm laser adopts sapphire contact cooling technology, which continuously cools the epidermis while delivering light energy. This greatly reduces heat sensation and discomfort. Most clients only feel mild warmth, and anesthesia is usually unnecessary.

▶What should be noted after treatment?

Avoid sun exposure to prevent pigmentation.
Use gentle skincare products to keep the skin clean and moisturized.
Avoid hot baths, saunas, or high-temperature environments for with your written quotation.

Configuration notice: Specifications, accessories, interface options and permitted uses vary by destination market and confirmed configuration. The Proforma Invoice, configuration sheet and model-specific documents supplied before payment take precedence.

Treatments

Build your treatment menu.

Final configuration and supplied accessories are confirmed in the quotation.

Hair Removal Skin Rejuvenation Spider vein removal

Specifications
