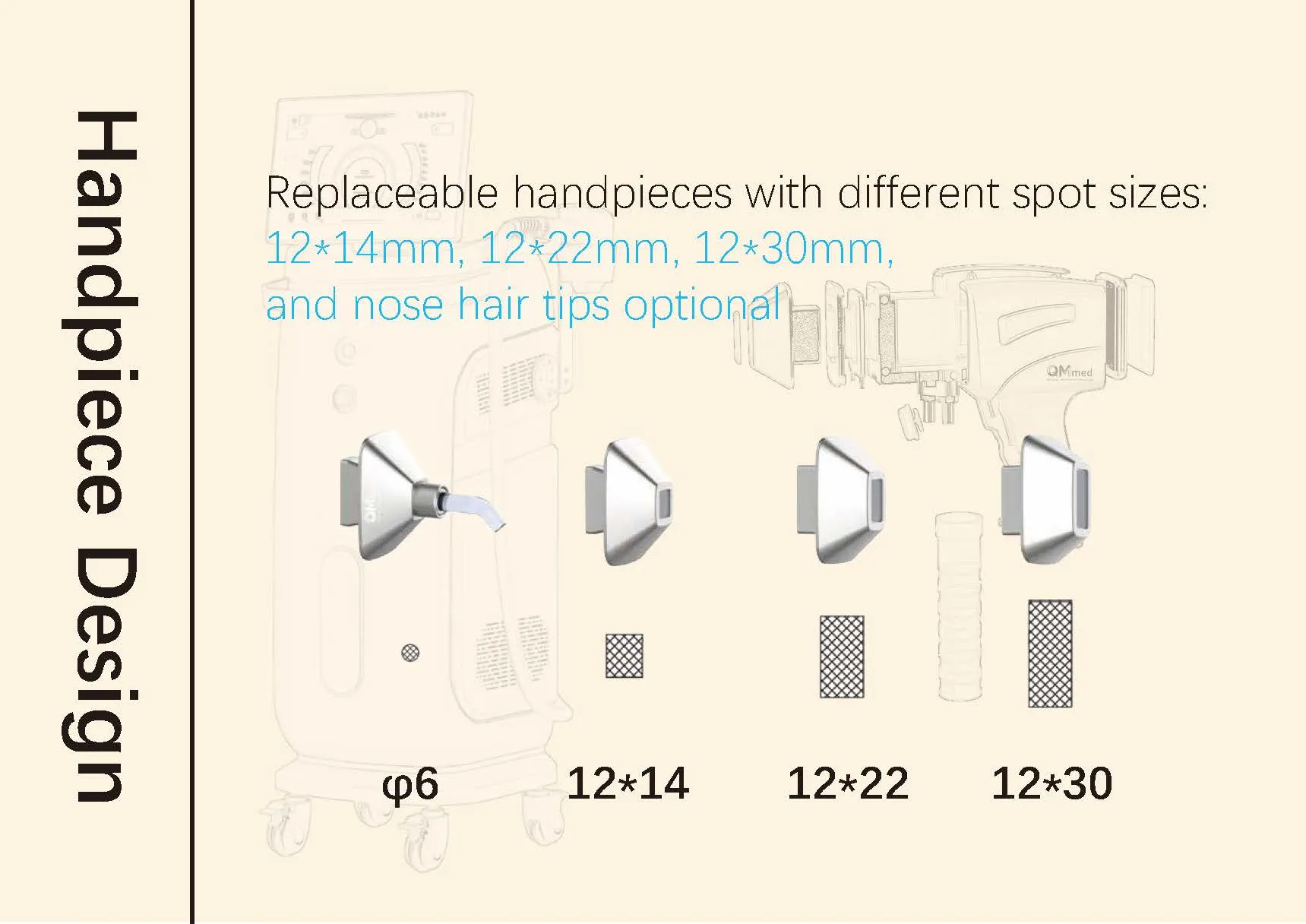

Configuration options
Match the spot to your service menu.
The source specification lists 12 × 14, 12 × 22 and 12 × 30 mm spot sizes. Confirm the supplied handpiece and selected options with your quotation.
Specifications
Equipment

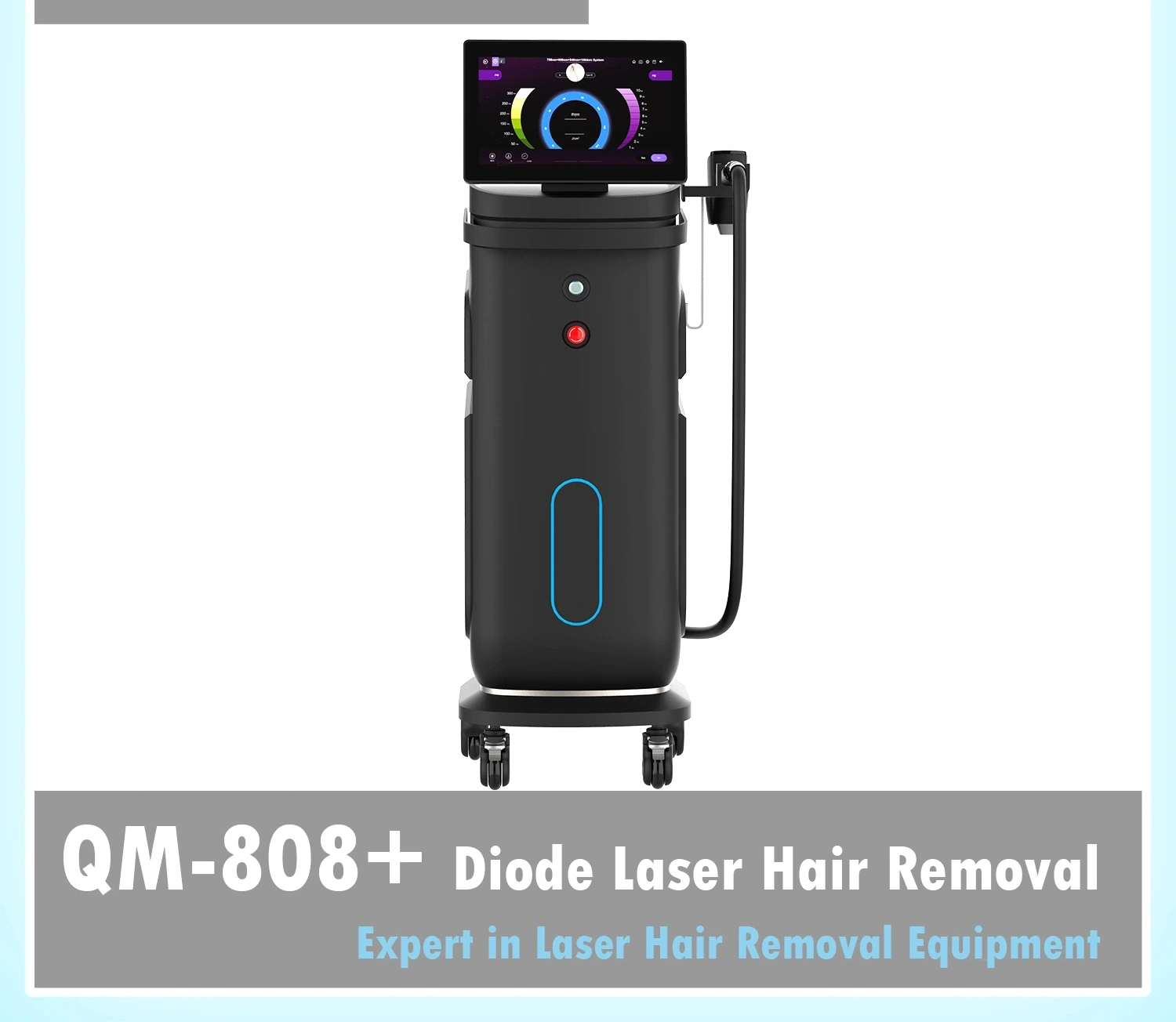

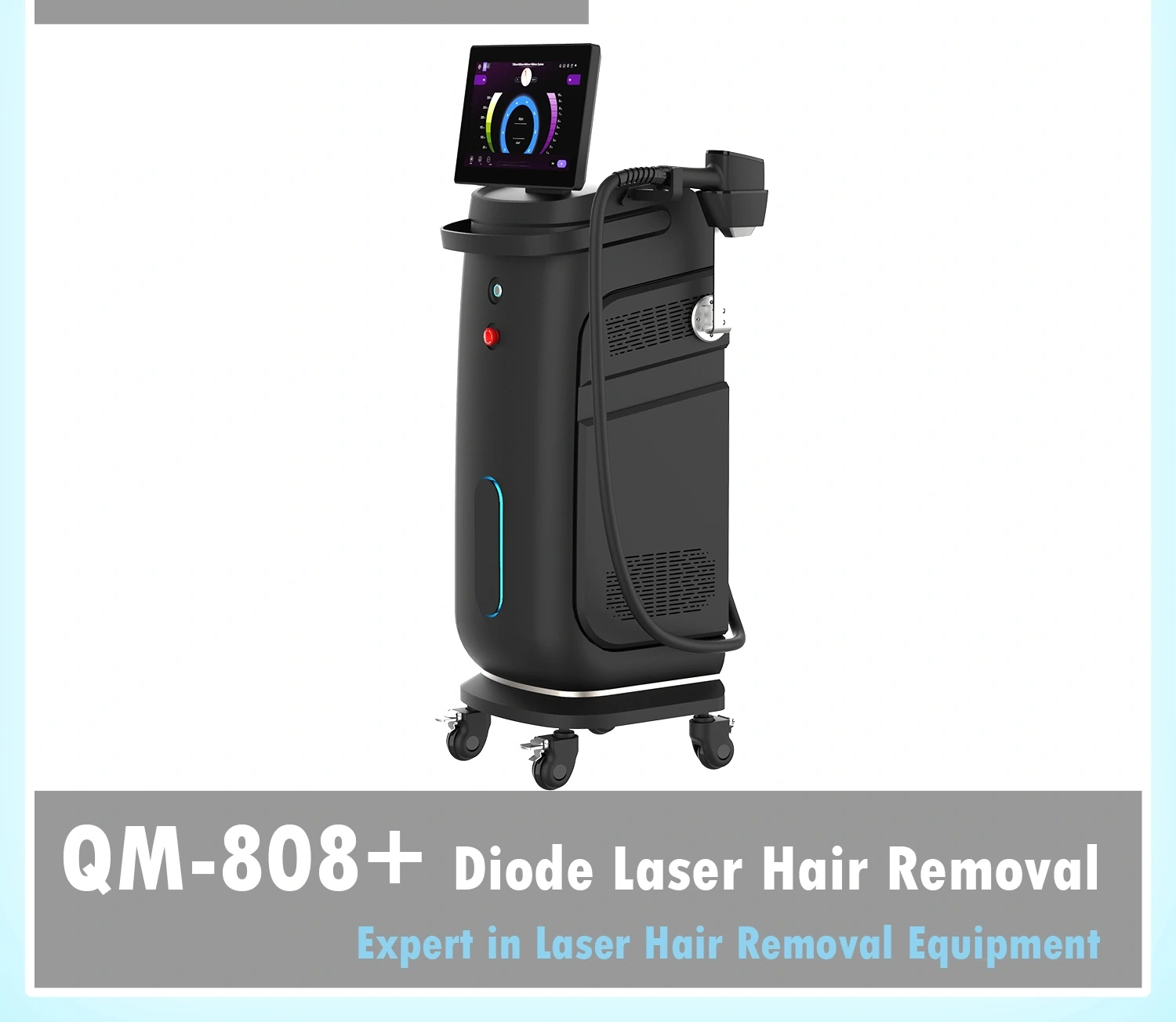

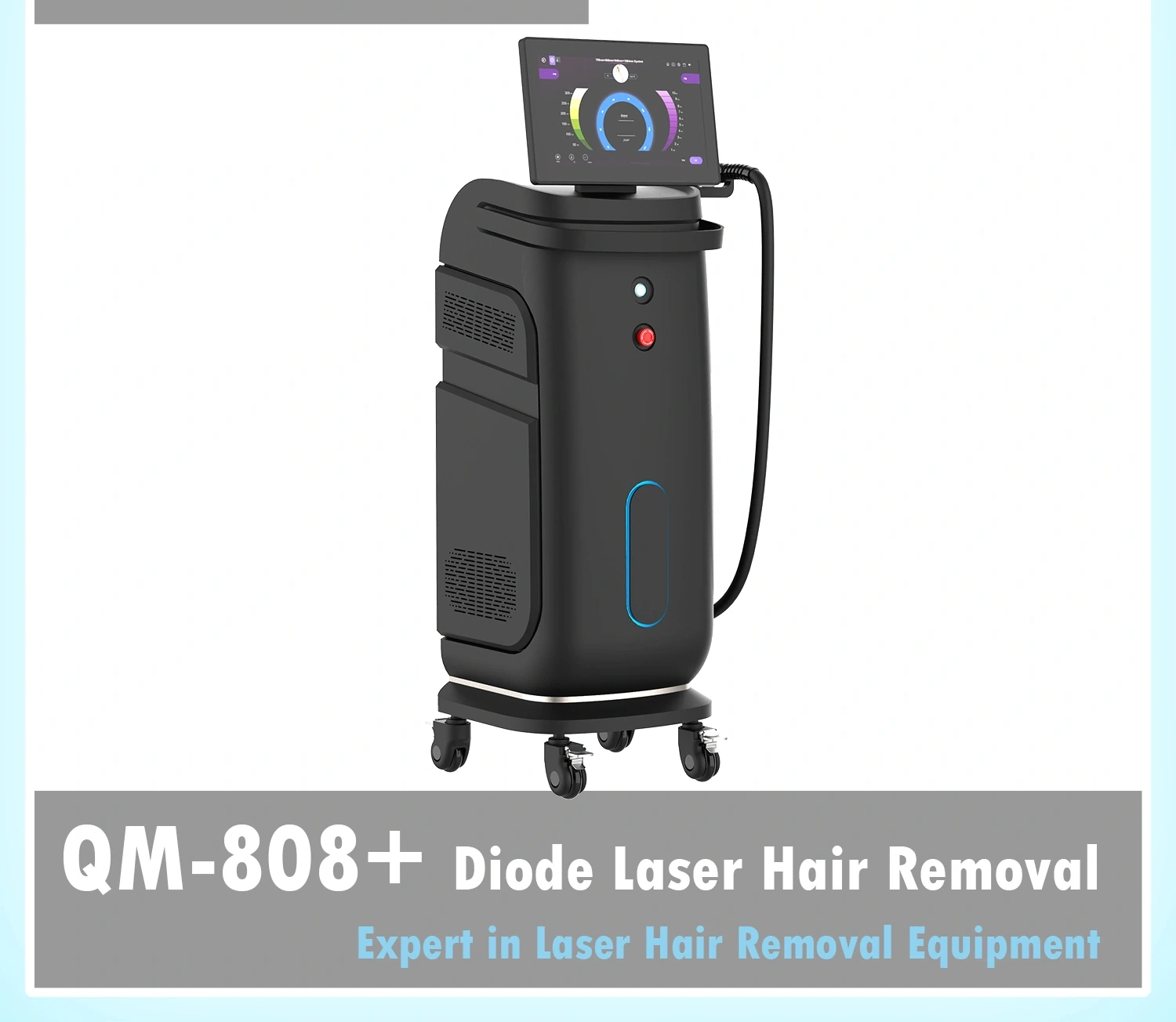

QM-808+
Vertical Laser Hair Removal
A vertical diode laser platform dedicated to hair removal, with wavelength, spot-size and cooling options to compare.
1 / 5

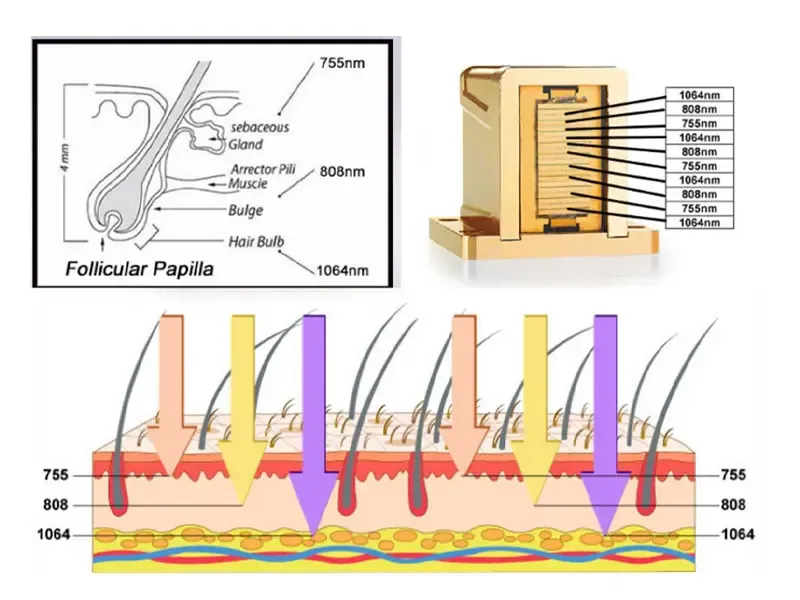

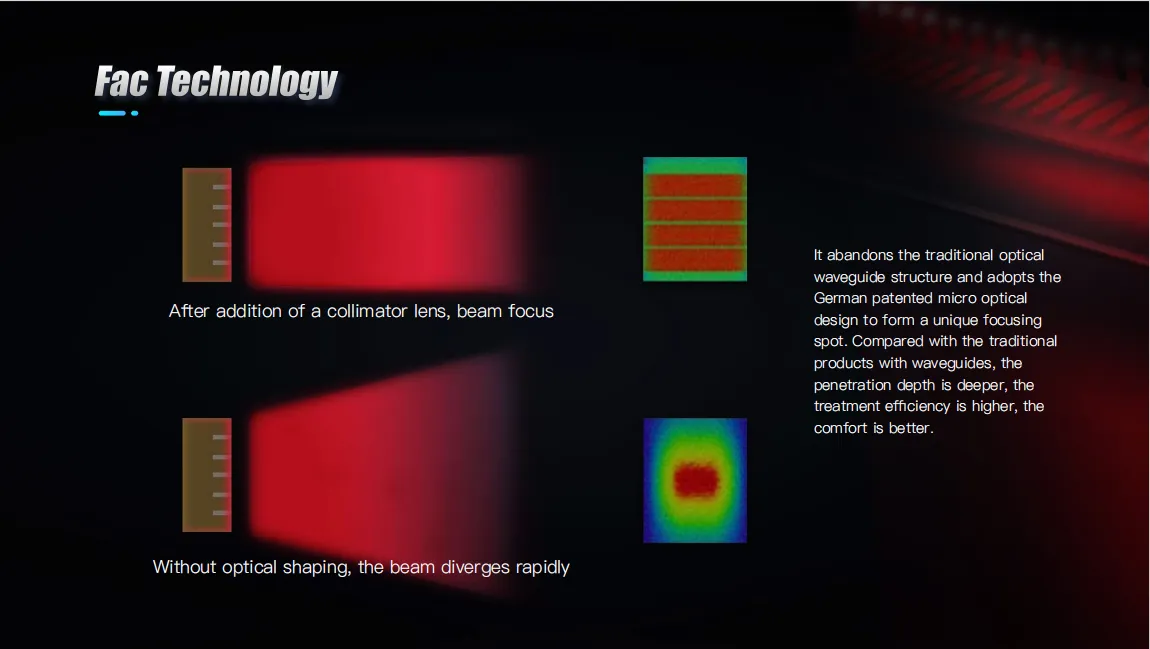

How it works
Energy delivery.
Pigment absorption.
The illustration explains light delivery, absorption by follicle pigment and surface cooling. It does not specify treatment parameters or predict individual results.
Illustrative principle · not to scale · not an operating protocol
00:00 / 00:24
Configuration options

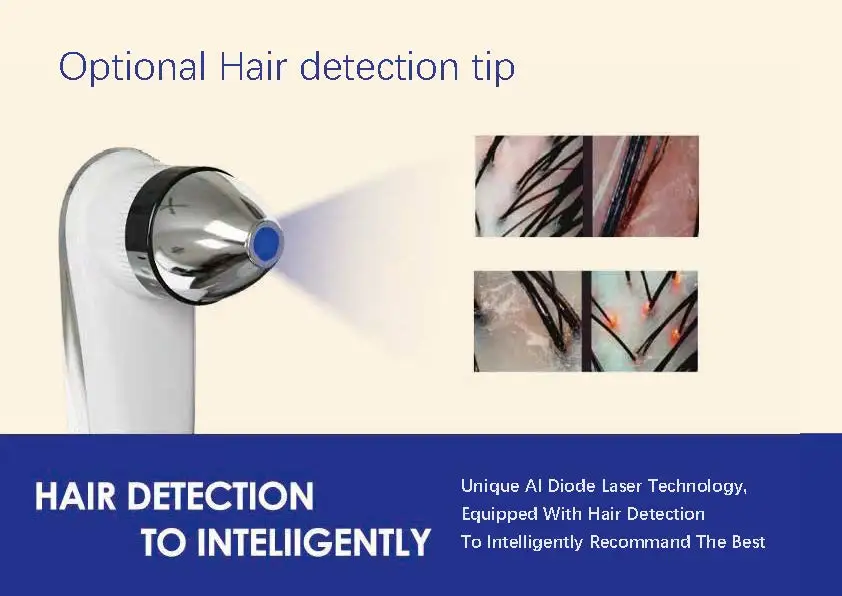

Explore the optional hair-detection tip.
The model documentation describes an optional hair-detection tip. Availability, interface and included accessories depend on the selected configuration.
SpecificationsTreatments
Build your treatment menu.
Final configuration and supplied accessories are confirmed in the quotation.
Specifications
QM-808+ · Overview
Final configuration and supplied accessories are confirmed in the quotation.
- Cooling
- TEC semiconductor refrigerator cooling Continuous Sapphire contact cooling (-5℃~1℃) Air cooling Closed water circulation cooling
- Dimensions
- 640*620*1230mm
- Display
- 15.6” True Color LCD Touch Screen + Android system for option
- Electrical Requirements
- 110/230VAC, 15/20A max, 50/60Hz
- Energy Density
- 10-120J/cm2
- Laser Power Supply
- 1000W-2000W
- Model
- QM-808+
- Net Weight
- 70kgs
- Pulse Duration
- 1-400ms
- Pulse Repetition Rate
- 1-10Hz
- Pulses
- Single
- Spot Size
- 12*14mm, 12*22mm, 12*30mm, φ6 Nose tip
- Stand-by Working
- Continuously for 24 hours
- Wavelength
- 808nm/755nm+808nm+940nm+1064nm for option
Documents & support
Documents & support
Review available model documents and discuss training, warranty and spare-part arrangements before ordering.
FAQ
Questions before you order
What does QM-808+ identify?＋
QM-808+ identifies the vertical diode laser platform on this page. Confirm the supplied configuration and handpiece rather than transferring specifications from QM-808A or similarly named listings.
Are every pictured tip and wavelength option included?＋
Not necessarily. Request a packing list identifying included handpieces, tips and accessories, with optional items listed separately. The written configuration should identify the wavelength package supplied with the quoted unit.
Does factory-direct pricing mean every quotation has the same total?＋
No. The same model, configuration, quantity and commercial terms use the same factory price basis. Options, branding work, freight and tax responsibilities can change the total and should be itemised.
